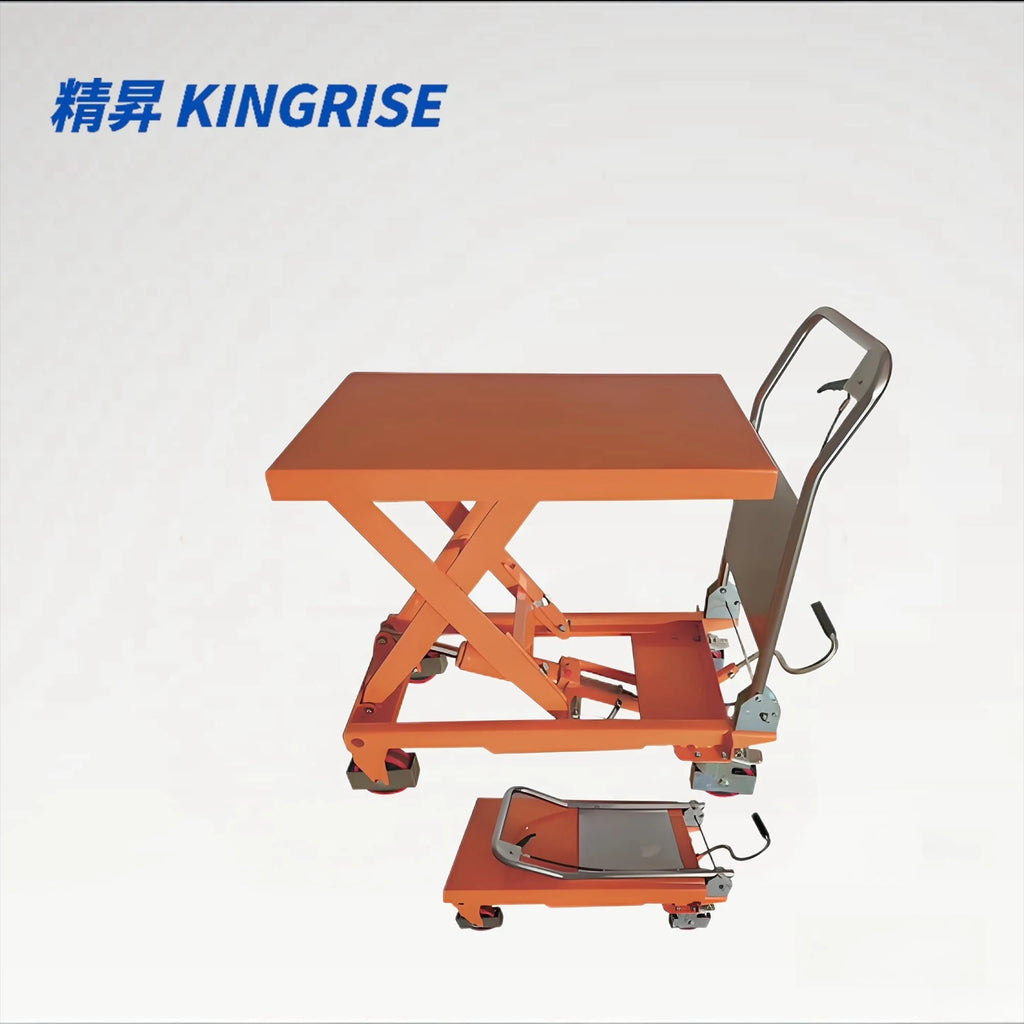

TF30A & TF50A Manual Hydraulic Scissor Lift Table, 660–1,100 lb

Product Overview

Move, raise, and position tooling, machine components, cartons, containers, and industrial materials with a mobile height-adjustable platform.

The KINGRISE TF30A and TF50A manual hydraulic scissor lift tables are designed for industrial assembly, machinery maintenance, packing, inspection, production-line supply, and general indoor material handling.

Choose the TF30A with a 660 lb (300 kg) rated capacity or the heavier-duty TF50A with a 1,100 lb (500 kg) rated capacity. Both models feature a 32.3 × 19.7 in (820 × 500 mm) steel platform and raise materials to a maximum platform height of 35.4 in (900 mm).

A foot-operated hydraulic pump provides manual lifting without electrical power, while the hand-release control allows controlled platform lowering. Industrial PU casters and integrated wheel brakes support smooth movement and secure positioning in workshops, warehouses, production areas, and maintenance stations.

Key Features

• Two Rated Capacities: Choose the TF30A with 660 lb capacity or the TF50A with 1,100 lb capacity.
• Up to 35.4 in Platform Height: Both models raise loads to a maximum platform height of 35.4 in (900 mm).
• Manual Hydraulic Operation: A foot-operated pump raises the platform without requiring an electrical power supply.
• Controlled Lowering: The hand-operated release control provides controlled platform descent.
• 32.3 × 19.7 in Steel Platform: The 820 × 500 mm platform provides a practical surface for components, tools, cartons, containers, and equipment.

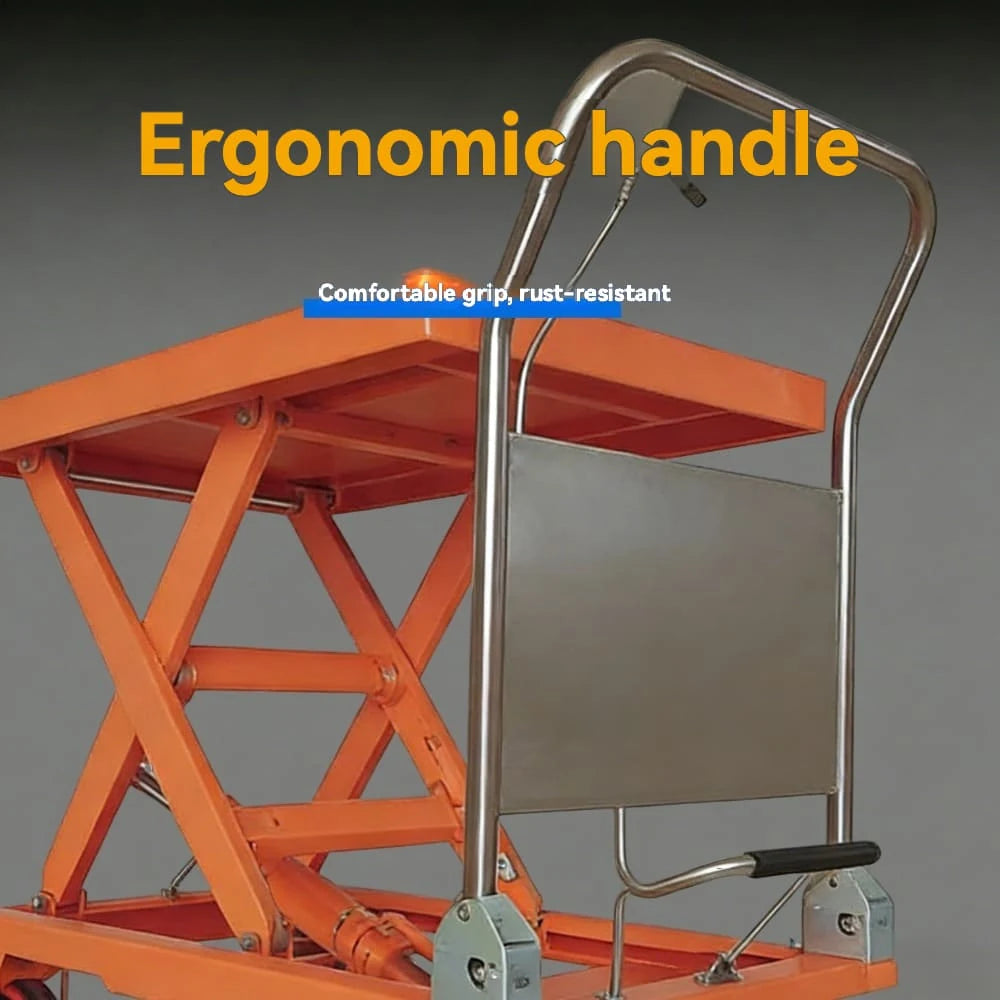

• Mobile Industrial Design: Industrial casters and a push handle support movement between indoor work areas.

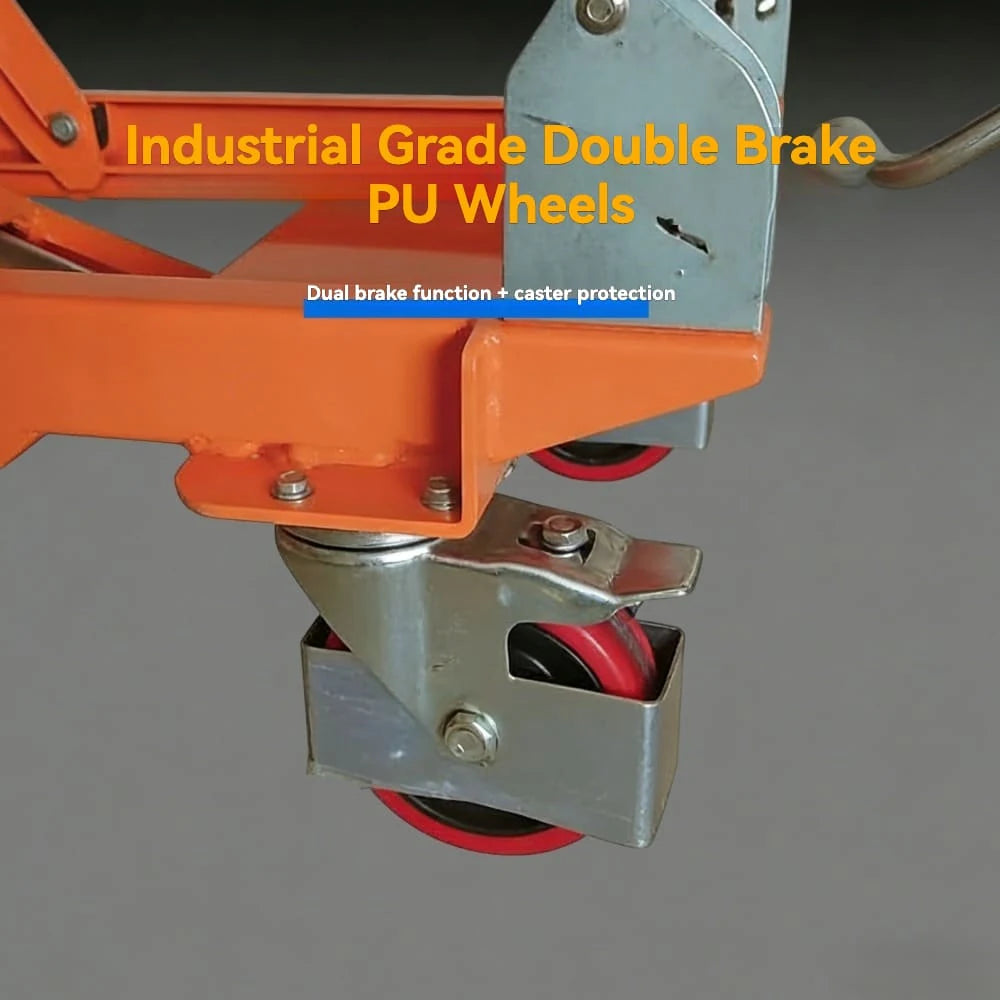

• Integrated Wheel Brakes: The braking system helps keep the lift table securely positioned during stationary use.

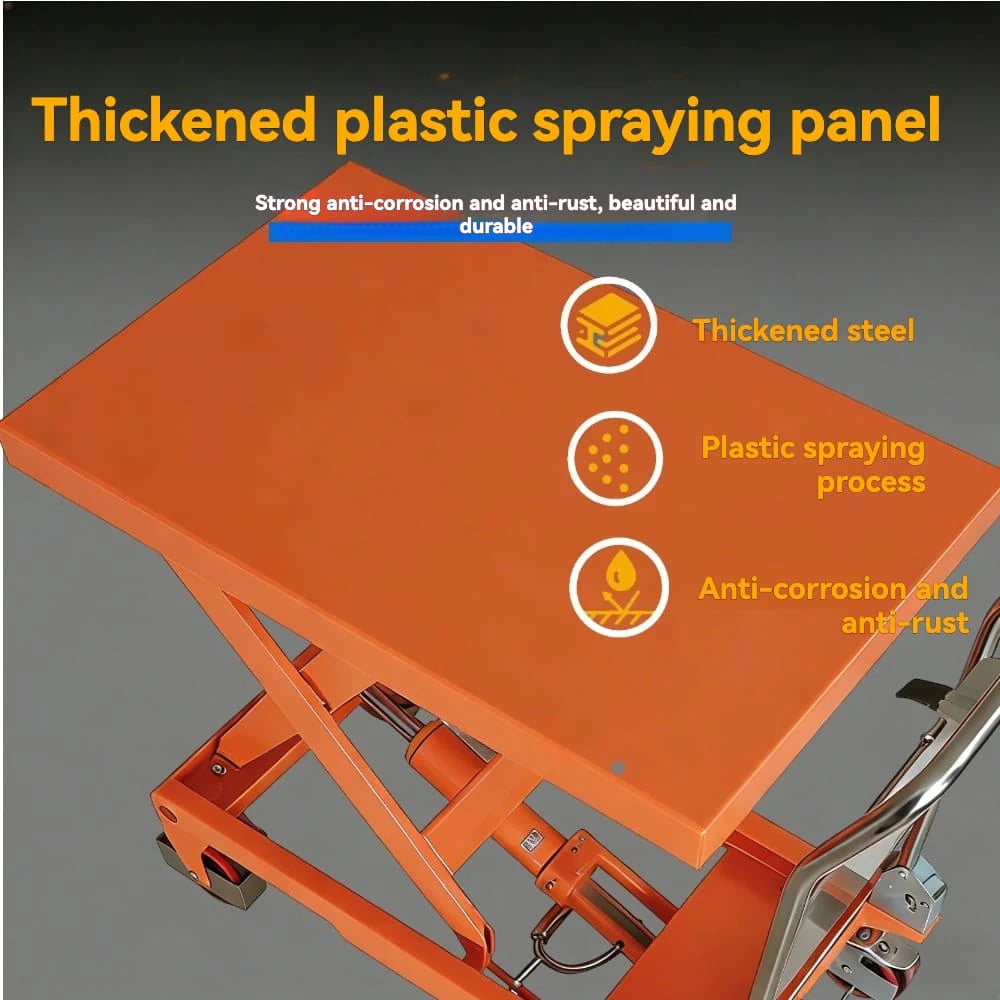

• Powder-Coated Steel Construction: The steel frame and platform feature a durable high-visibility finish for regular industrial use.

Applications

• Industrial Assembly: Position tooling, components, fixtures, and work-in-process materials beside assembly stations.
• Machinery Maintenance: Raise motors, gearboxes, replacement parts, and tools to convenient servicing heights.
• Production-Line Supply: Deliver and position components beside machinery, workstations, and packing areas.
• Packing and Inspection: Adjust cartons, containers, and products to suitable heights for checking, labeling, sorting, and packing.
• Warehouse Material Handling: Move compatible goods and supplies between indoor storage, preparation, and production areas.

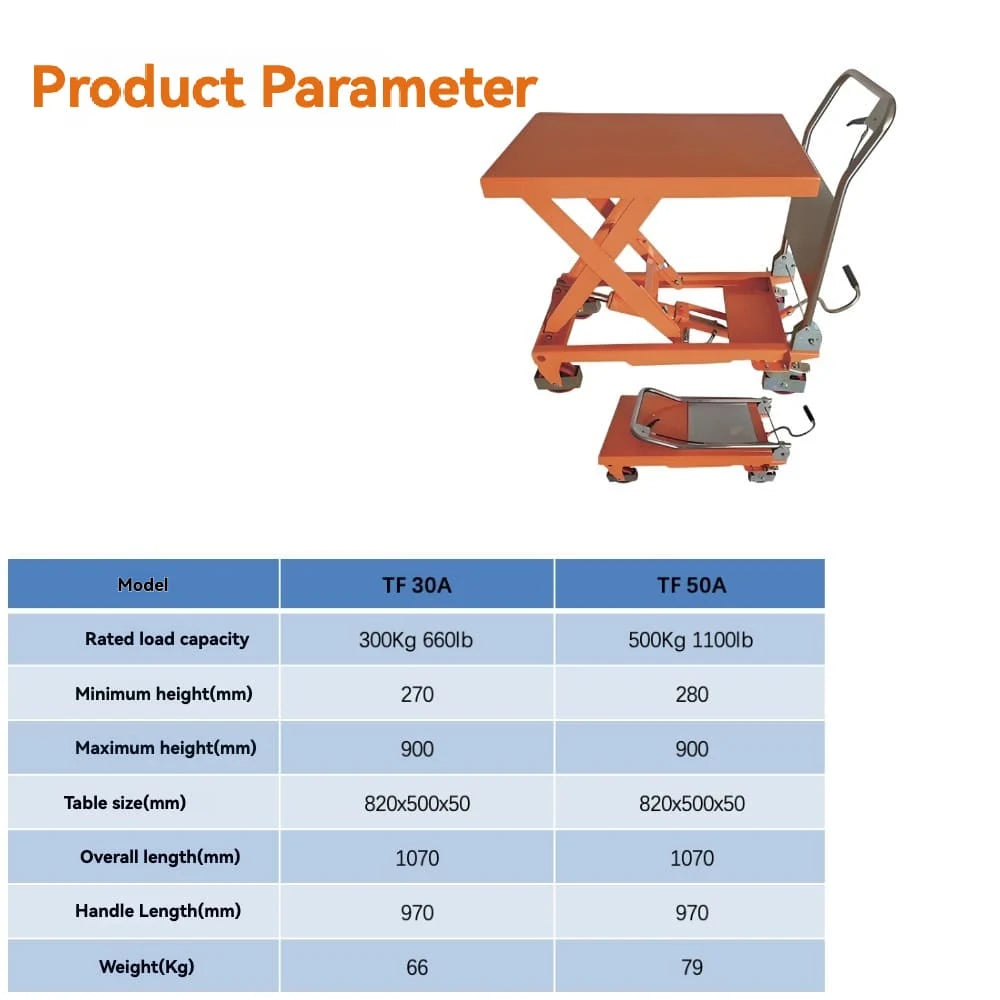

Specifications
