PT Series Heavy-Duty Mobile Hydraulic Lift Table, 2,000–4,000 lb
$312.50
Handle heavy dies, motors, gearboxes, tooling, and machine components with a stable and mobile work platform.

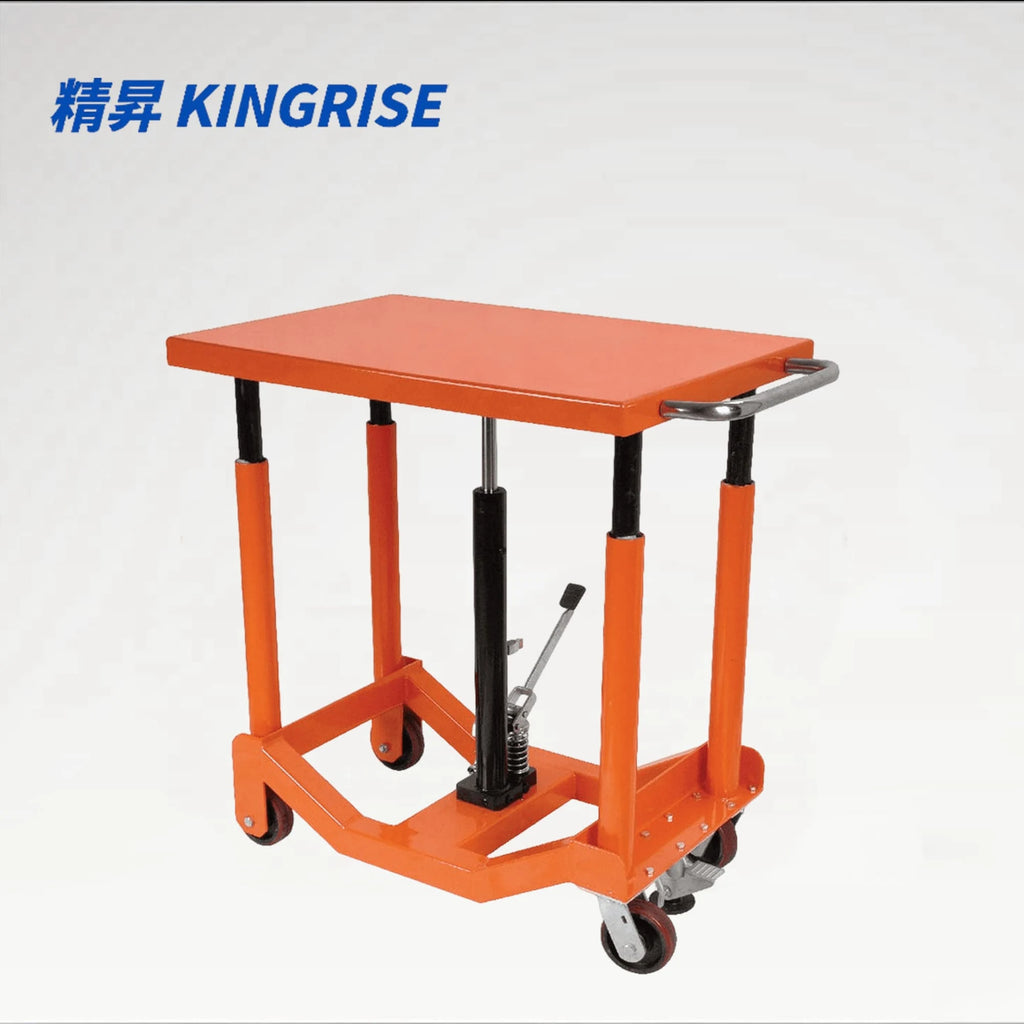

The KINGRISE PT Series mobile hydraulic lift table is a four-post, manually operated lifting solution designed for industrial positioning, assembly, maintenance, and material transfer. Choose from 2,000 lb (910 kg) or 4,000 lb (1,820 kg) rated capacities, with maximum platform heights of 37 in (940 mm) or 49 in (1,245 mm).
The 24 × 36 in (610 × 915 mm) steel platform is raised by a foot-operated hydraulic pump, allowing operators to position heavy loads at a practical working height. Heavy-duty casters and integrated wheel brakes support smooth movement and secure stationary use.
Key Features
-
2,000 or 4,000 lb Capacity
Four model configurations are available for different load and height requirements.
-
Two Working Height Ranges
Choose a 25–37 in lift range or a higher 31–49 in lift range.
-
Foot-Operated Hydraulic Pump
Raise the platform without using your hands, making load positioning more convenient.
-

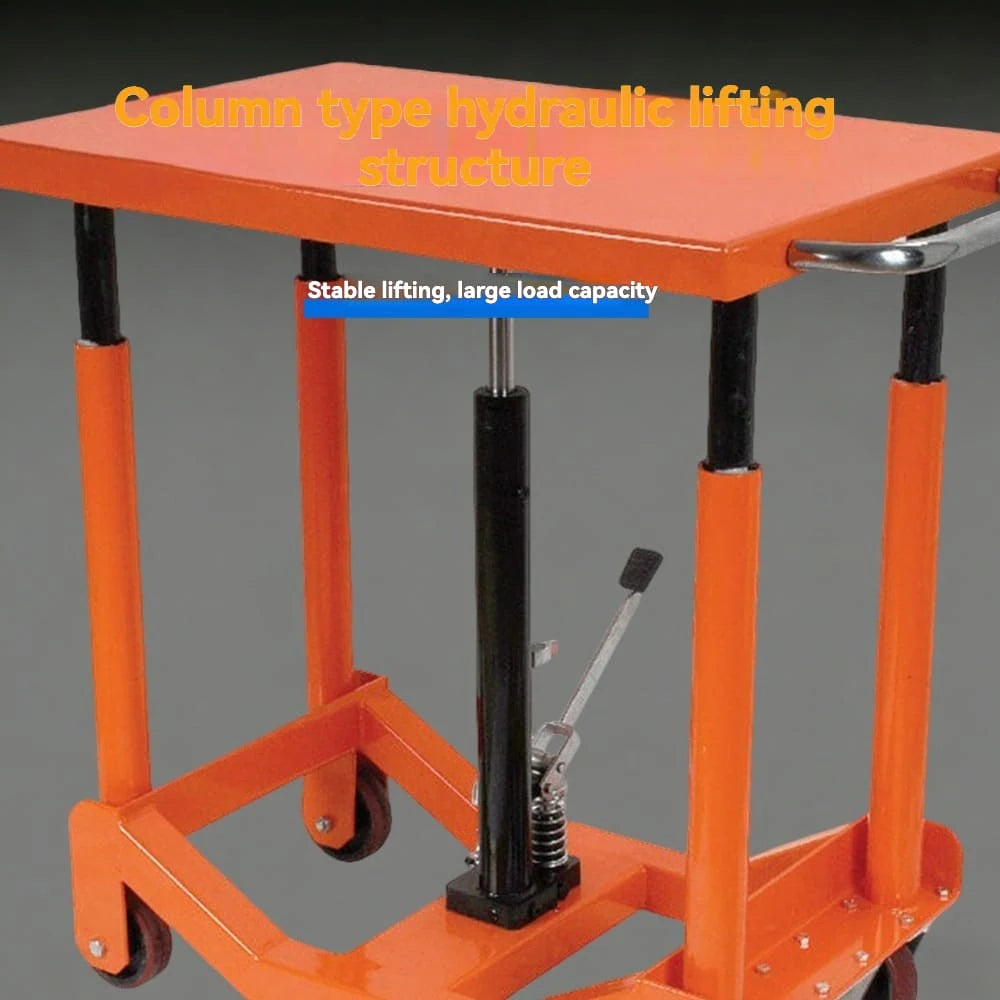

Stable Four-Post Construction
The reinforced four-post structure provides stable support for demanding industrial applications.
-

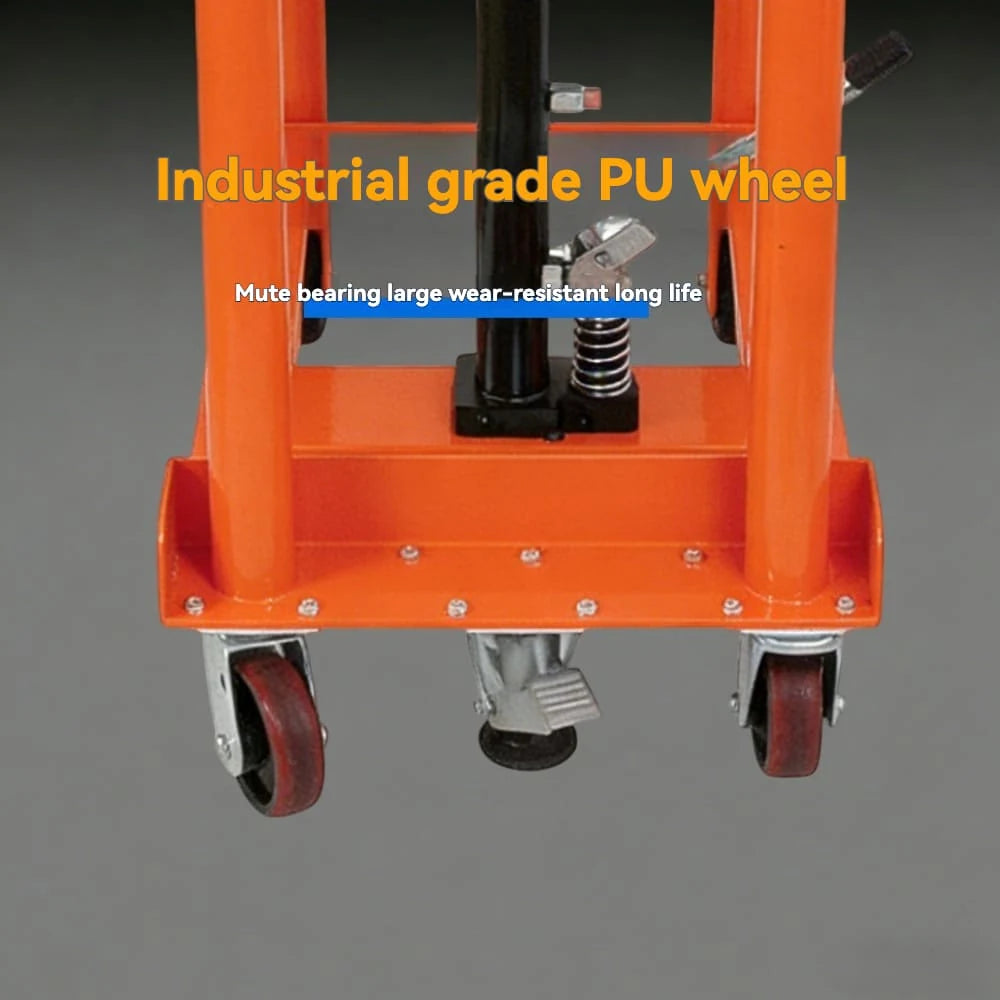

Mobile and Lockable
Industrial casters allow the table to be moved between workstations, with wheel brakes for stationary use.
-

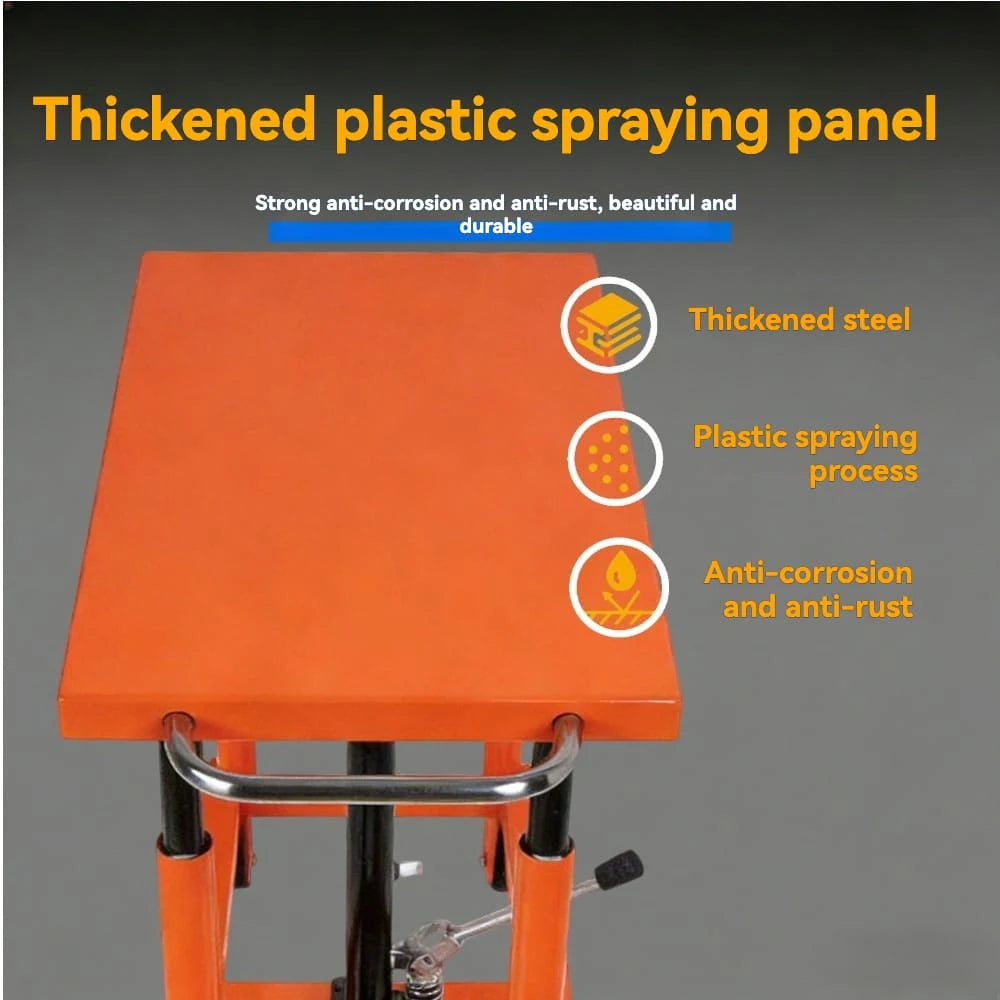

Heavy-Duty Steel Construction
Built with a steel frame and durable orange powder-coated finish for workshop and factory environments.
-
24 × 36 in Platform
A practical platform size for dies, motors, tooling, machine parts, and other heavy components.
Usage Scenarios
-
Mold & Die Shops: Ideal for the installation, removal, positioning, and transport of heavy injection molds and stamping dies.
-
Assembly Lines: Serves as a flexible mobile workstation that can be height-adjusted to align with production conveyors.
-
Machinery Maintenance: Raises heavy motors, gearboxes, tools, and machine components to a practical working height for maintenance and repair.
-
Warehouse Logistics: Supports the transfer and positioning of heavy components between workstations, storage areas, and loading points.

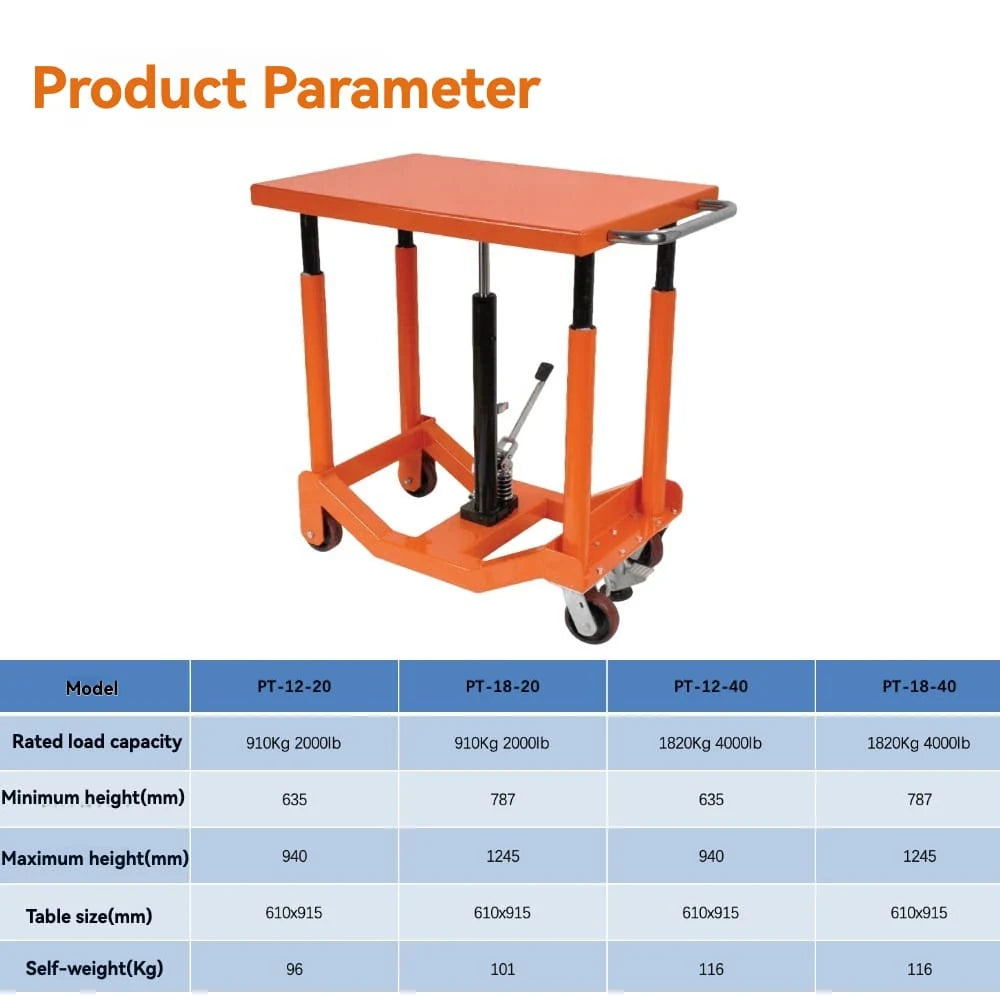

Specifications
| Model | Rated Capacity | Platform Height Range | Platform Size | Net Weight |
|---|---|---|---|---|
| PT-12-20 | 2,000 lb（910 kg） | 25–37 in（635–940 mm） | 24 × 36 in（610 × 915 mm） | 212 lb（96 kg） |
| PT-18-20 | 2,000 lb（910 kg） | 31–49 in（787–1,245 mm） | 24 × 36 in（610 × 915 mm） | 223 lb（101 kg） |
| PT-12-40 | 4,000 lb（1,820 kg） | 25–37 in（635–940 mm） | 24 × 36 in（610 × 915 mm） | 256 lb（116 kg） |
| PT-18-40 | 4,000 lb（1,820 kg） | 31–49 in（787–1,245 mm） | 24 × 36 in（610 × 915 mm） | 258 lb（117 kg） |
