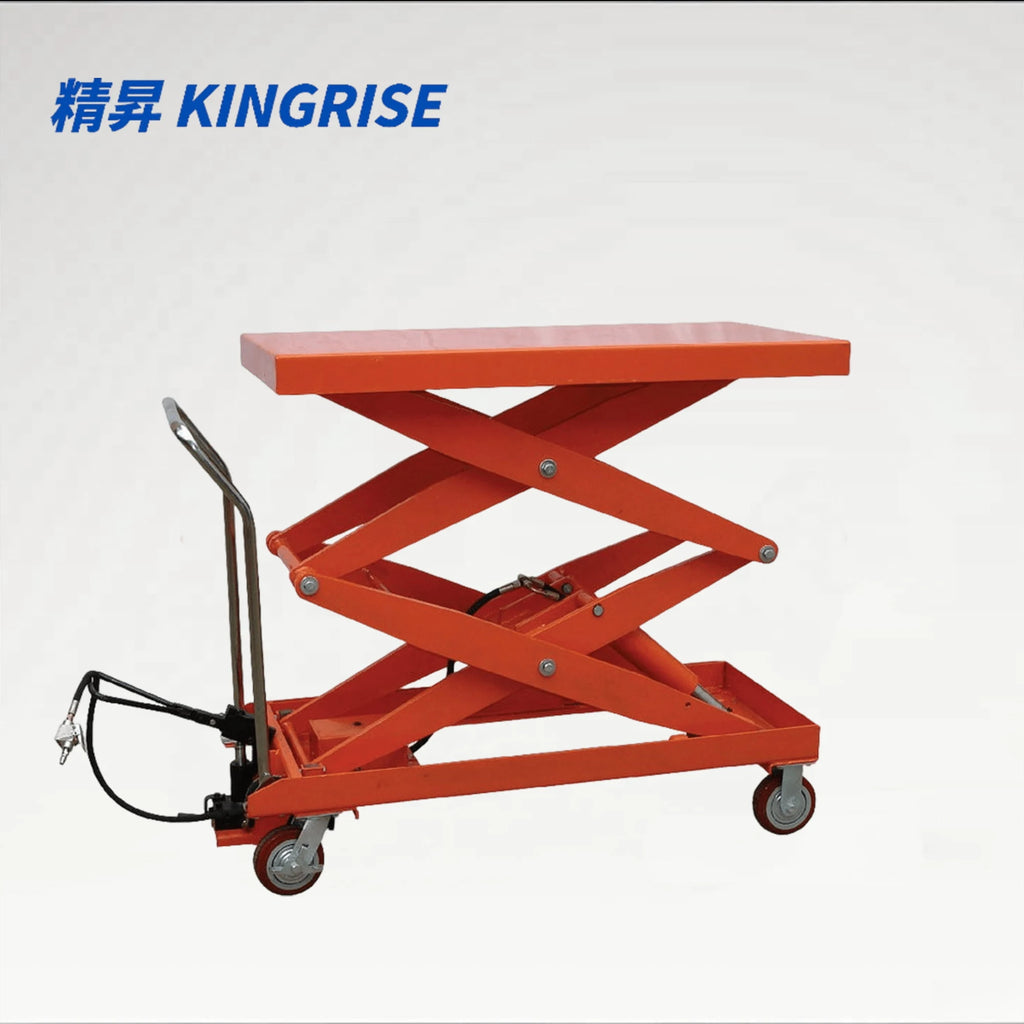

TFY-75SD Extra High Lift Air & Manual Cart,1650 lbs
$634.99
The KINGRISE TFY-75SD Industrial Extra High Lift Air & Manual Hydraulic Table Cart is the ultimate B2B material handling solution for applications requiring exceptional vertical reach and heavy load capacities.
Equipped with a specialized multi-stage, reinforced double-scissor mechanism, the TFY-75SD effortlessly achieves a maximum lift height of 67 inches (1700 mm) while supporting up to 1650 lbs (750 kg). This heavy-duty cart features a versatile dual-power lifting system: connect it to your warehouse’s compressed air line for rapid, zero-effort pneumatic-assisted lifting, or use the reliable integrated foot pump for precise manual control anywhere on the shop floor.
Key Features
-

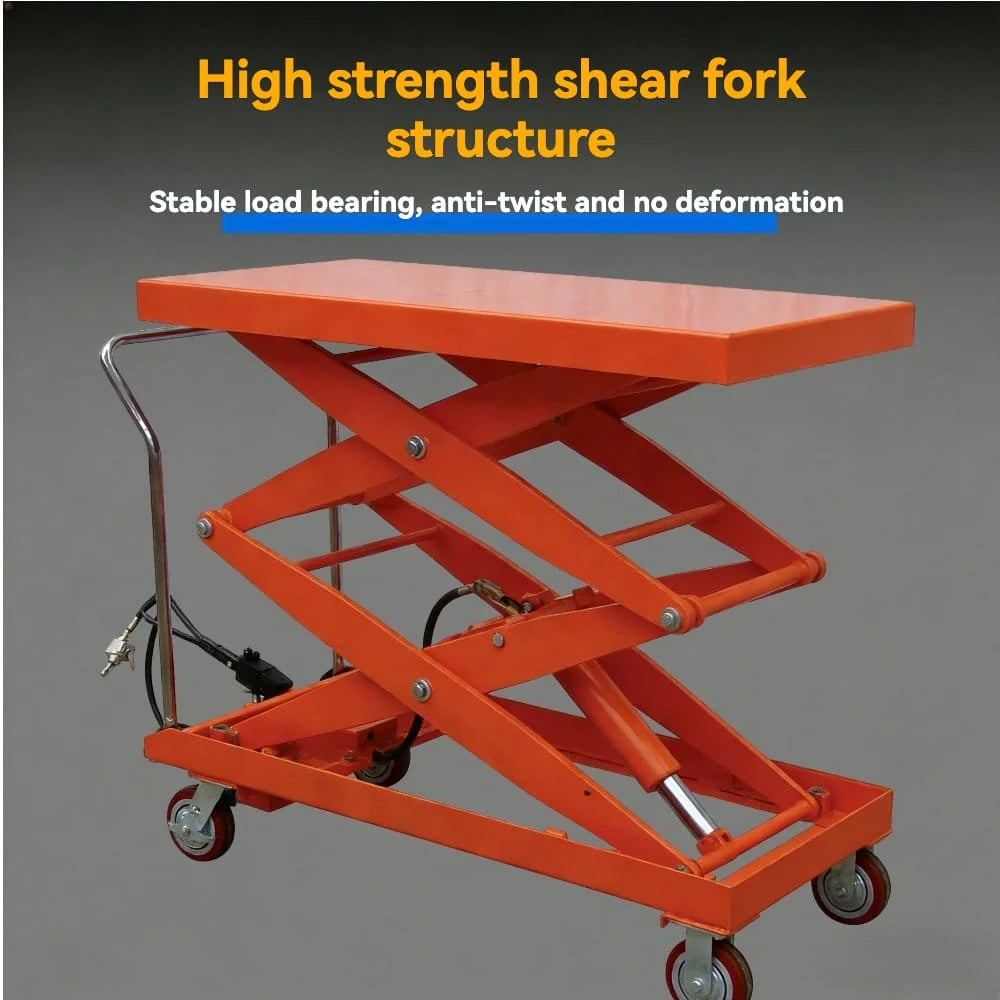

Exceptional Double-Scissor Lift Height: Engineered with a heavy-duty, multi-stage double scissor mechanism that extends up to a massive 67.0" (1700 mm), making it perfect for high-shelf stocking and mezzanine transitions.
-
Versatile Dual-Drive System: Features a quick-connect air valve for high-speed pneumatic-assisted lifting using shop air, alongside a classic manual hydraulic foot pedal for standalone, off-grid operation.
-
Massive 1650 lbs (750 kg) Capacity: Built with reinforced, thick structural steel pivot points and industrial-grade shear forks to ensure zero lateral sway and extreme stability at maximum vertical extension.
-
Expansive Heavy-Gauge Steel Platform: Offers a large, heavy-duty work surface measuring 47.2" x 24.0" (1200 x 610 mm) that easily accommodates oversized dies, pallets, engines, and heavy machinery components.
-

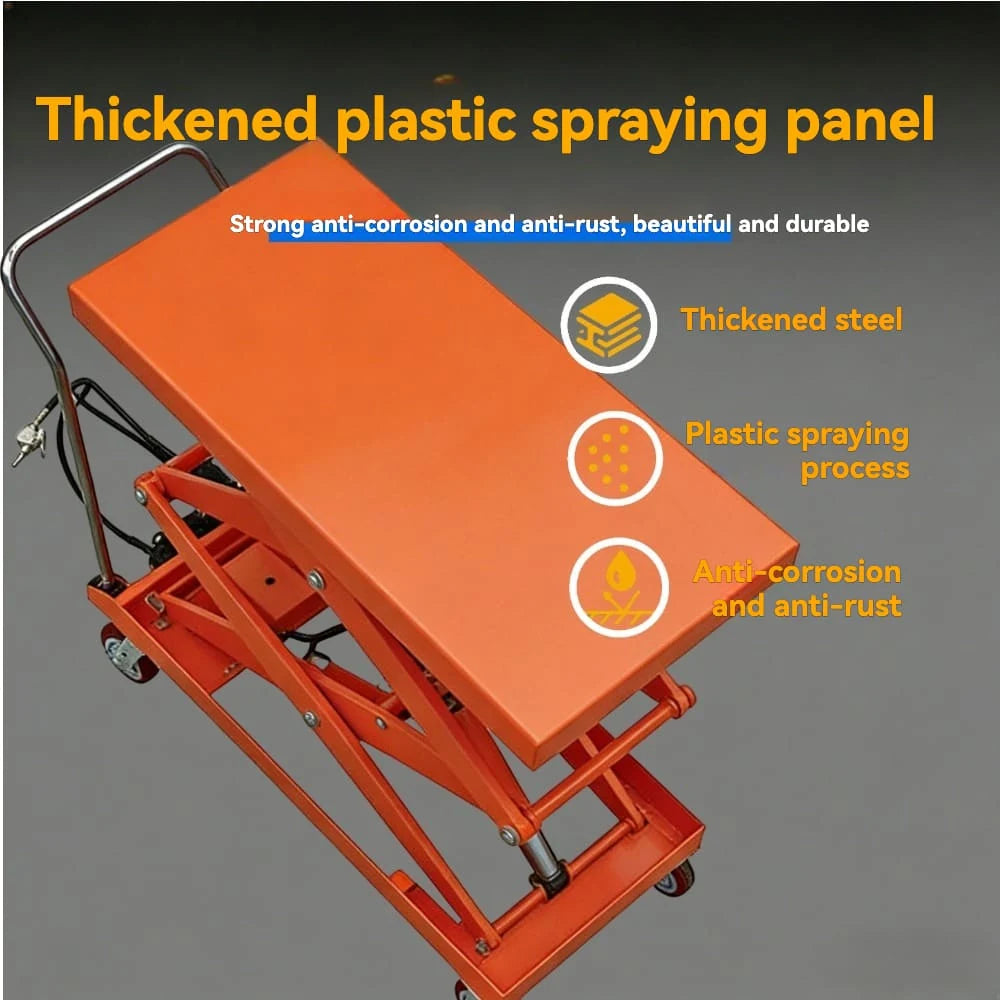

Premium Powder-Coated Protection: Finished with an advanced industrial-grade electrostatic powder coating that protects the heavy steel frame from corrosion, harsh chemicals, rust, and physical wear.
-

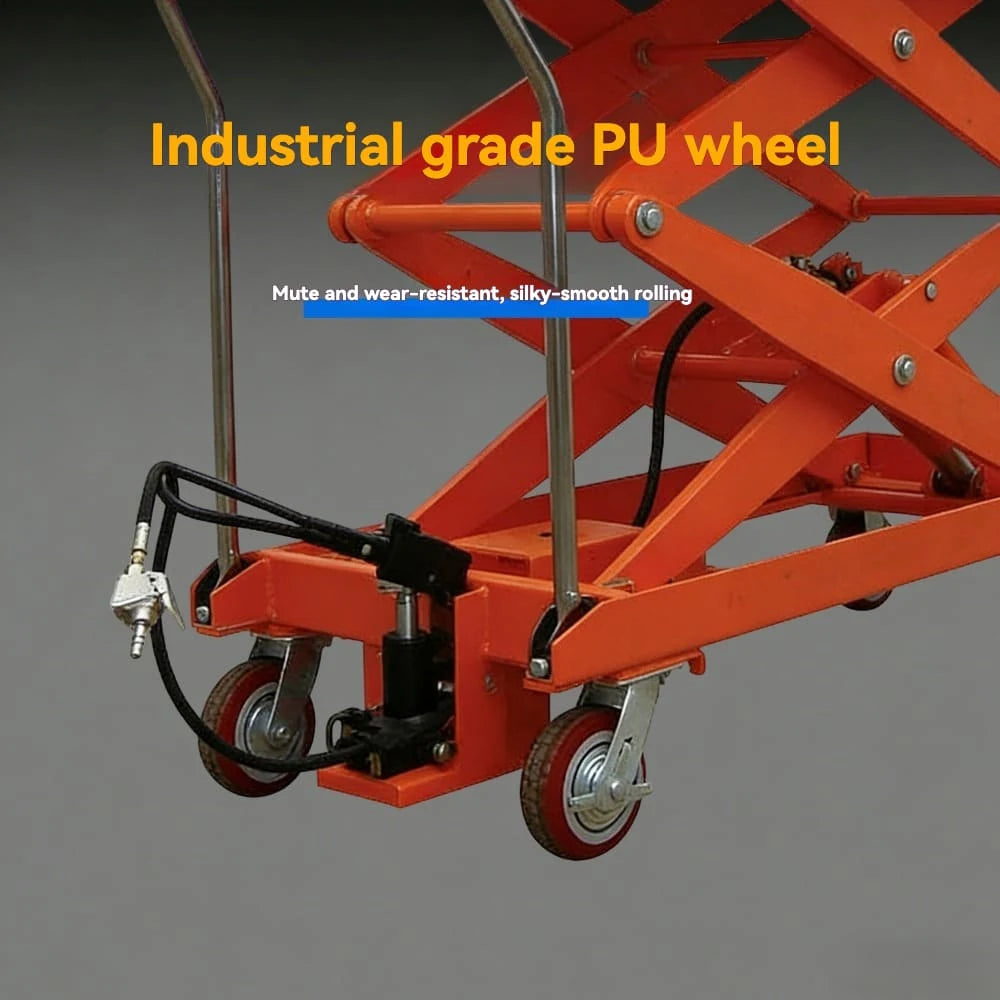

Heavy-Duty Polyurethane Casters with Dual Brakes: Rolls smoothly on non-marring PU wheels. Features two fixed front casters and two rear swivel casters equipped with responsive safety pedal-lock brakes for secure stationary positioning.
Usage Scenarios
-
High-Bay Warehousing & Stocking: Ideal for picking, placing, and sorting heavy parts onto high-level storage racks or shelving systems without the need for a full-sized forklift.
-
Die & Mold Maintenance Workstations: Perfectly aligns heavy injection molds and automotive stamping dies with high-clearance presses and CNC machines.
-
Aviation & Automotive Repair Maintenance: Safely lifts aircraft components, large gearboxes, and industrial machinery to eye level or higher for comfortable underside inspection and assembly.
-
Mezzanine & Multi-Level Workflows: Serves as a reliable, mobile material elevator to bridge the height gap between different warehouse platforms, production stages, or truck beds.

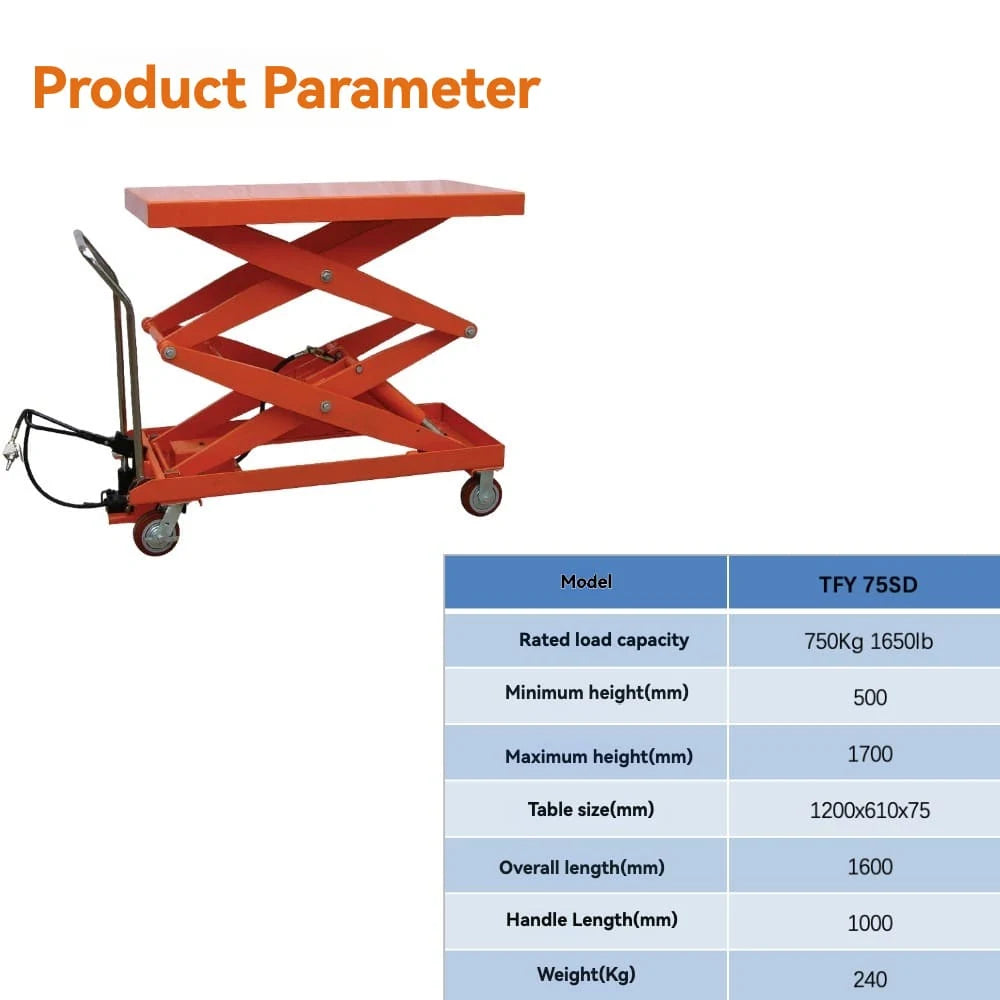

Technical Specifications (TFY-75SD)
| Attribute | Details |
| Model | TFY-75SD |
| Rated Load Capacity | 1650 lbs (750 kg) |
| Minimum Platform Height | 19.7" (500 mm) |
| Maximum Platform Height | 67.0" (1700 mm) |
| Table Platform Size (L x W x H) |
47.2" x 24.0" x 3.0" (1200 x 610 x 75 mm) |
| Overall Length | 63.0" (1600 mm) |
| Net Weight | 529.1 lbs (240 kg) |
| Power Input Options | Clean Compressed Air (Pneumatic) / Manual Hydraulic Foot-Pump |
Shipping & Quotation
Notice: Due to the heavy net weight (240 kg) and double-scissor packing size of the TFY-75SD, freight costs are calculated on an individual order basis to provide you with the most competitive shipping rates.
To get a fast, factory-direct wholesale quotation for kingrise.net, please submit your inquiry with:
-
Required Quantity (e.g., 1 unit, 5 units, or full-container B2B orders)
-
Destination ZIP/Postal Code & Country
-
Delivery Site Specifics (Commercial Warehouse with loading dock / fork truck, or Residential address requiring a liftgate service)
-
Customization Preferences (e.g., custom paint colors, private OEM brand labeling, or special platform sizes)
