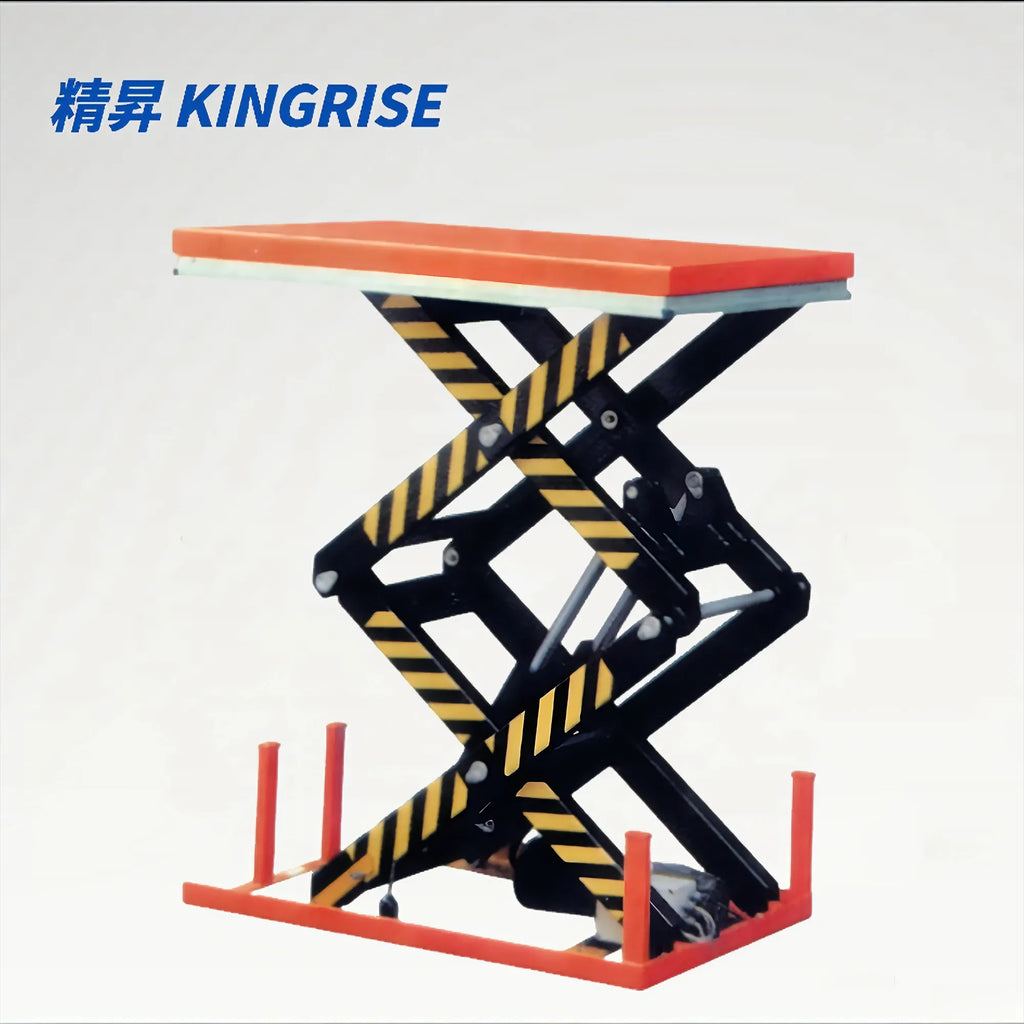

ETW Series Stationary Electric Double-Scissor Lift Table, 4,400 lb
$1,378.68
Product Overview
Raise and position palletized loads, tooling, machinery components, and bulk materials with a stable, powered lifting platform.
The KINGRISE ETW Series stationary electric double-scissor lift table is designed for production-line integration, industrial assembly, material positioning, loading, and workstation height adjustment. Both models support loads up to 4,400 lb (2,000 kg).
The electric hydraulic lifting system adjusts the platform height from 14.2 to 70.1 in (360 to 1,780 mm), providing approximately 55.9 in (1,420 mm) of vertical travel. The double-scissor structure provides the extended lifting range required for positioning heavy loads at different equipment and workstation heights.
Choose the ETW2000 with a 51.2 × 33.5 in platform or the larger ETW2001 with a 63.0 × 39.4 in platform. A wired pendant controller allows the operator to raise, lower, and stop the platform from a convenient position.
Key Features
-
4,400 lb Rated Capacity: Both models support loads up to 4,400 lb (2,000 kg) within the rated capacity.
-
14.2–70.1 in Platform Height: The powered hydraulic system adjusts the platform from 14.2 to 70.1 in (360–1,780 mm).
-

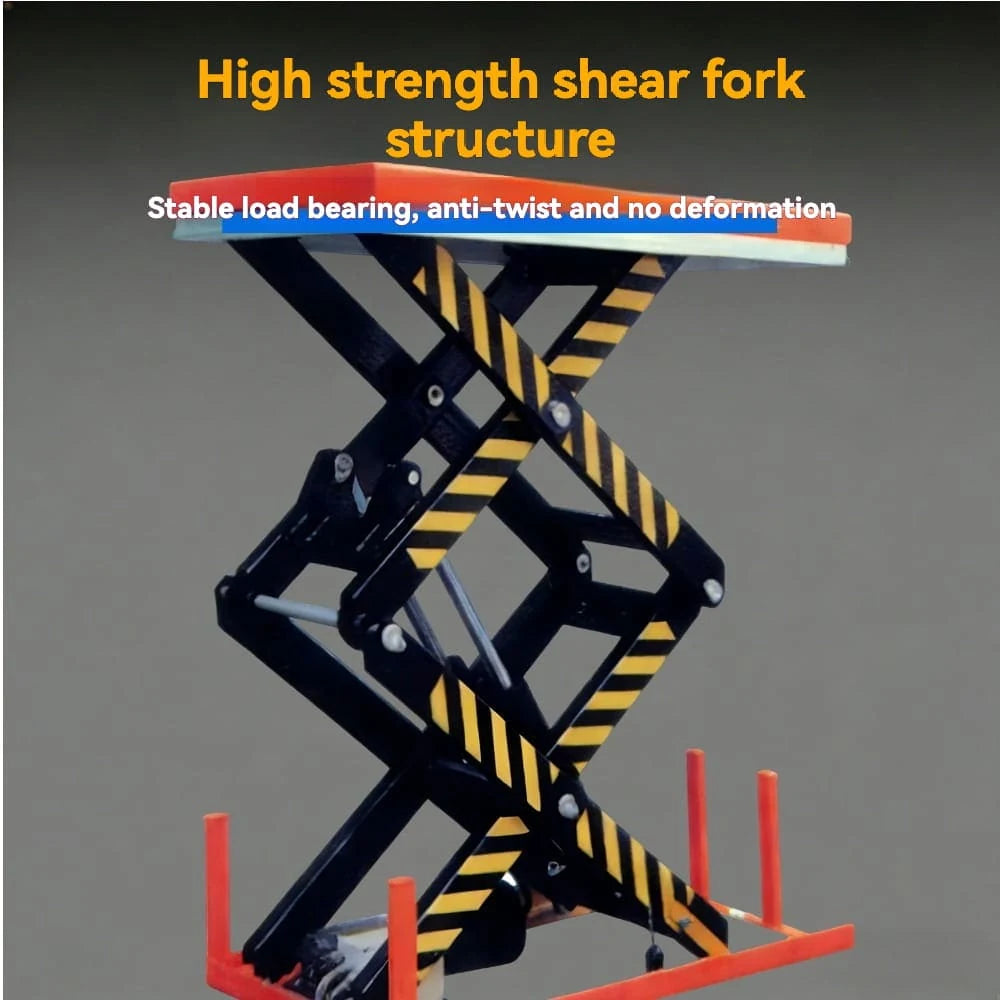

Double-Scissor Lifting Structure: The reinforced steel mechanism provides extended vertical platform movement.
-
Two Platform Sizes: Choose the ETW2000 with a 51.2 × 33.5 in platform or the ETW2001 with a 63.0 × 39.4 in platform.
-

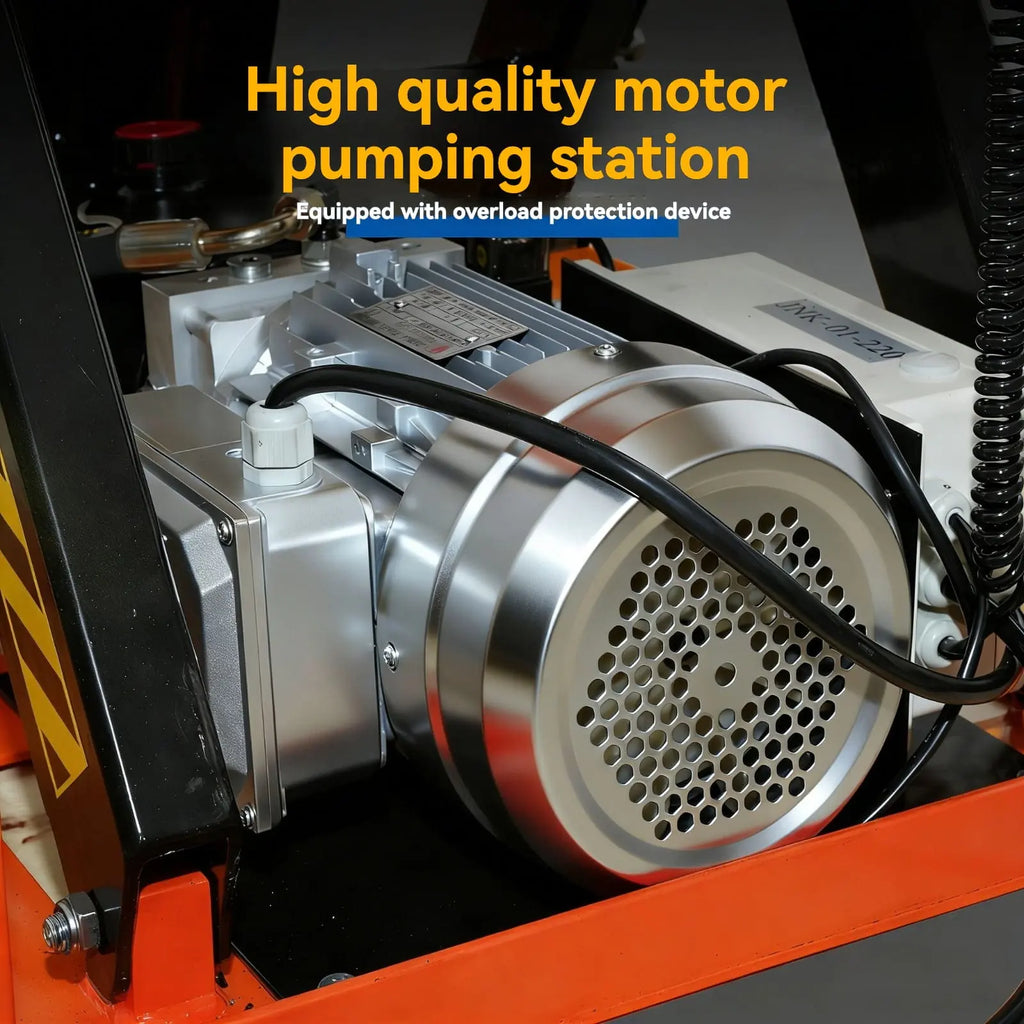

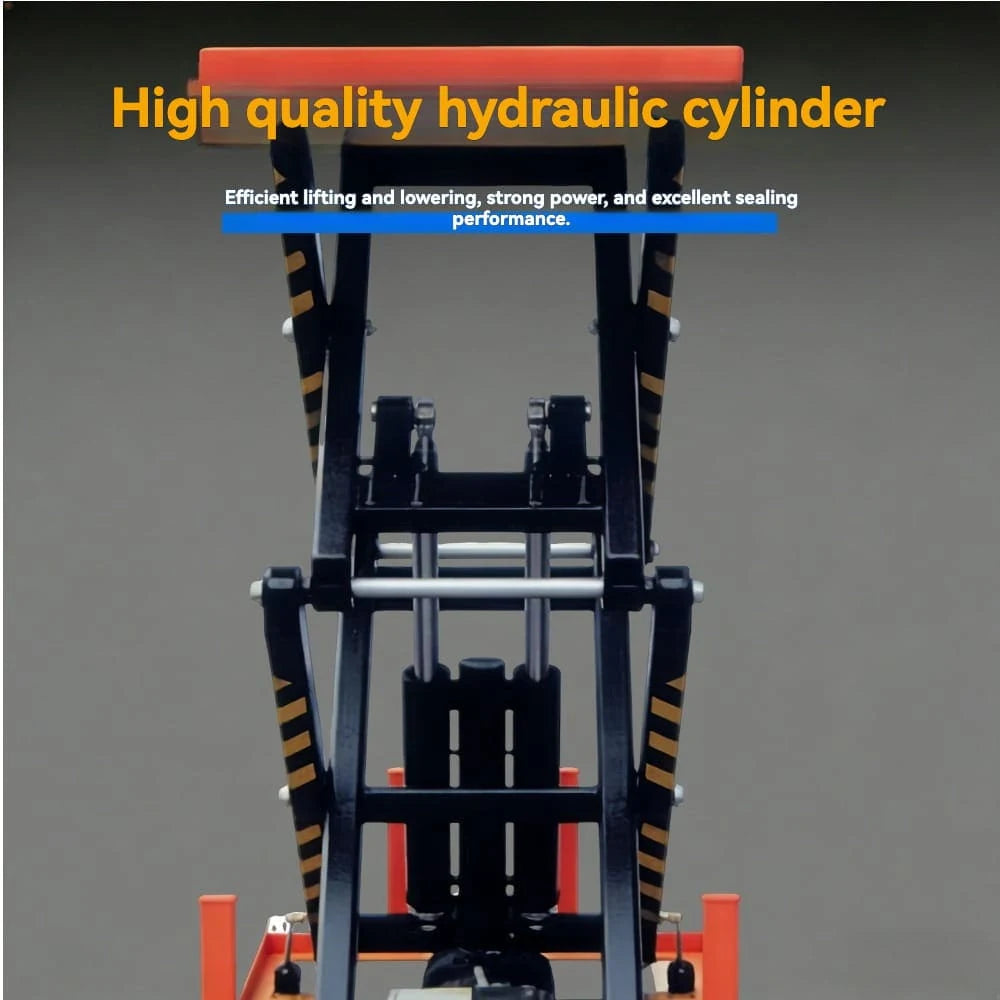

Electric Hydraulic Operation: The motor-driven hydraulic system raises and lowers the platform without manual pumping.
-

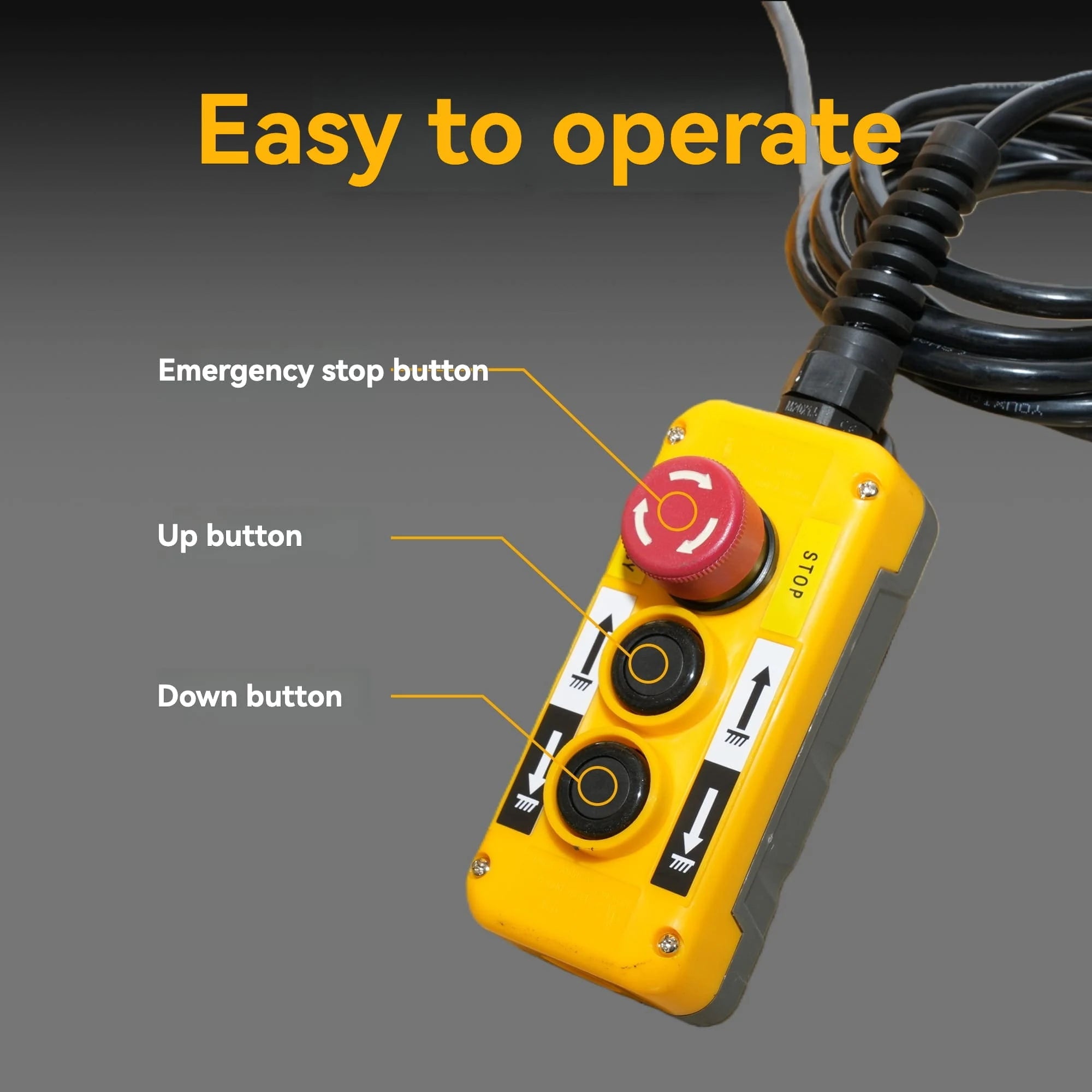

Pendant Control: The wired controller provides convenient raise, lower, and emergency-stop functions.
-
Stationary Industrial Design: Designed for integration into fixed work areas, production lines, loading stations, and material-handling systems.
-

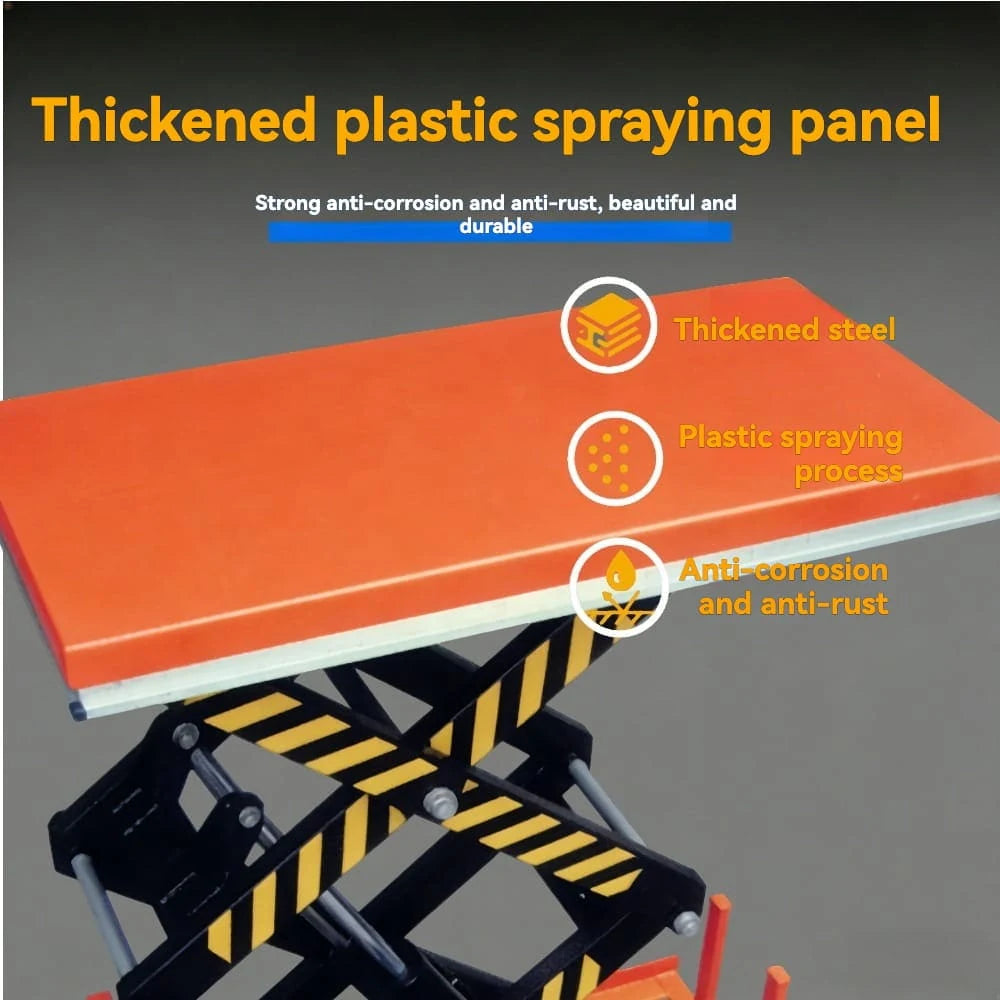

Powder-Coated Steel Construction: The steel structure features a high-visibility powder-coated finish for regular industrial use.
Applications
-
Production-Line Integration: Raise and position components, pallets, and work-in-process materials between different operating heights.
-
Industrial Assembly: Support machinery components, tooling, and equipment during assembly and installation tasks.
-
Material Loading and Positioning: Lift heavy loads to match workbenches, conveyors, machinery, and loading platforms.
-
Palletized Material Handling: Position compatible palletized goods for inspection, preparation, transfer, and production supply.
-
Machinery and Tooling Handling: Raise dies, molds, tooling, and heavy components for maintenance and production operations.

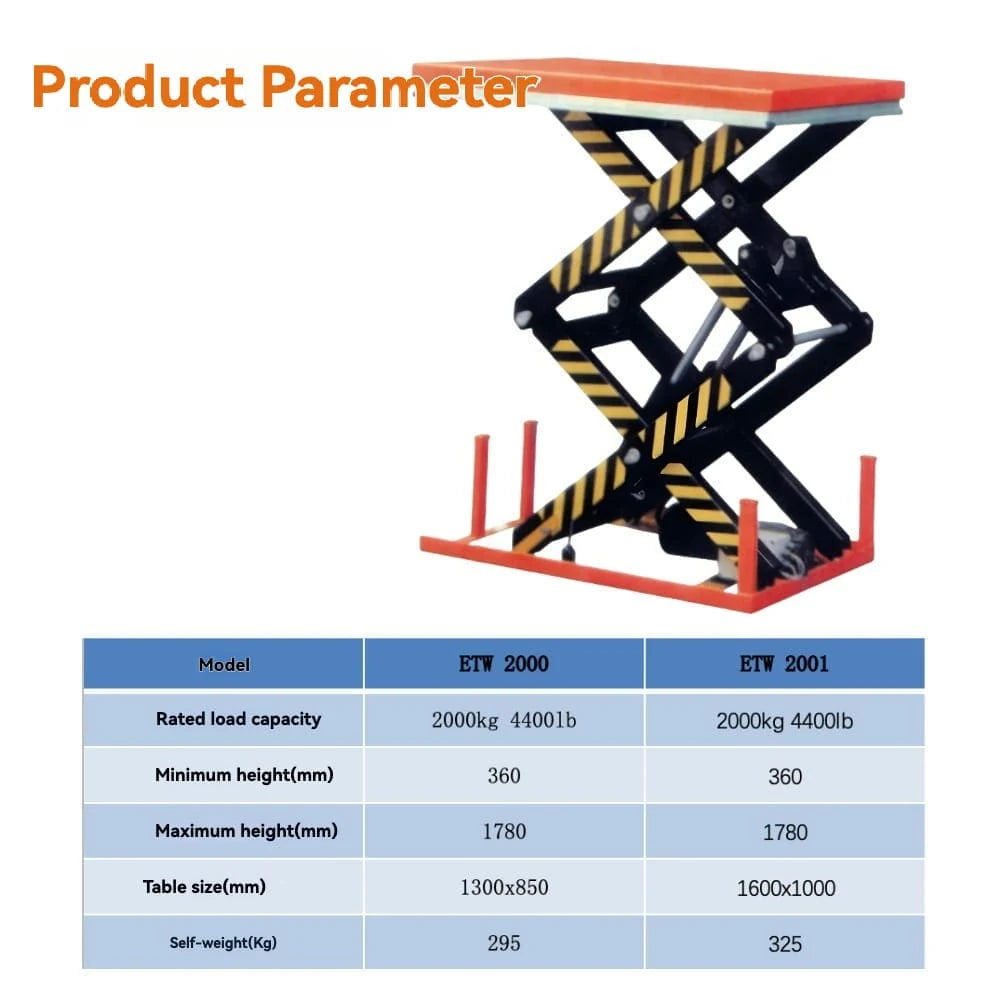

Specifications
| Attribute | ETW2000 | ETW2001 |
|---|---|---|
| Rated Capacity | 4,400 lb (2,000 kg) | 4,400 lb (2,000 kg) |
| Platform Height Range | 14.2–70.1 in (360–1,780 mm) | 14.2–70.1 in (360–1,780 mm) |
| Vertical Travel | 55.9 in (1,420 mm) | 55.9 in (1,420 mm) |
| Platform Size | 51.2 × 33.5 in (1,300 × 850 mm) | 63.0 × 39.4 in (1,600 × 1,000 mm) |
| Net Weight | 650 lb (295 kg) | 716 lb (325 kg) |
| Lifting System | Electric Hydraulic | Electric Hydraulic |
| Lifting Structure | Double Scissor | Double Scissor |
Shipping & Quotation
Shipping cost is calculated separately based on the selected model, order quantity, and delivery destination.
To receive an accurate quotation, please provide:
- Required model
- Required quantity
- Destination country
- ZIP or postal code
- Installation environment
- Required power supply
- Any special packing or delivery requirements
