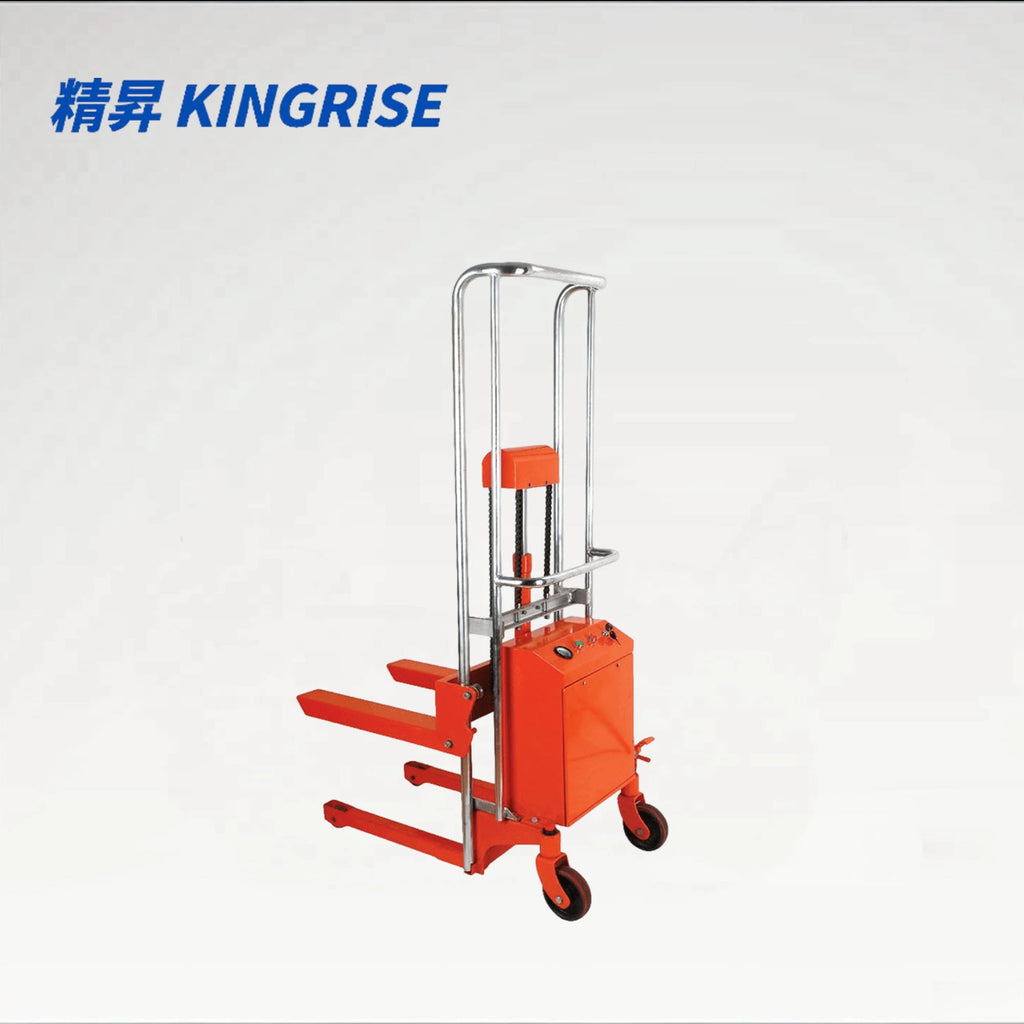

ETF Series Semi-Electric Walking Stacker,880 lbs Capacity
$1,029.41
The KINGRISE ETF Series Semi-Electric Walking Stacker offers an exceptionally agile and cost-effective solution for narrow-aisle warehousing and light-duty pallet lifting.
As a premier hand push forklift paired with high-efficiency motorized lifting, this versatile walkie forklift allows operators to manually maneuver and position loads with zero rolling resistance, while raising cargo to heights up to 66.9" (1700 mm) at the push of a button. With a reliable 880 lbs (400 kg) rated capacity, this compact electric pallet lift is the ultimate upgrade for workshops, commercial stockrooms, and retail environments seeking ergonomic efficiency.
Key Features
-

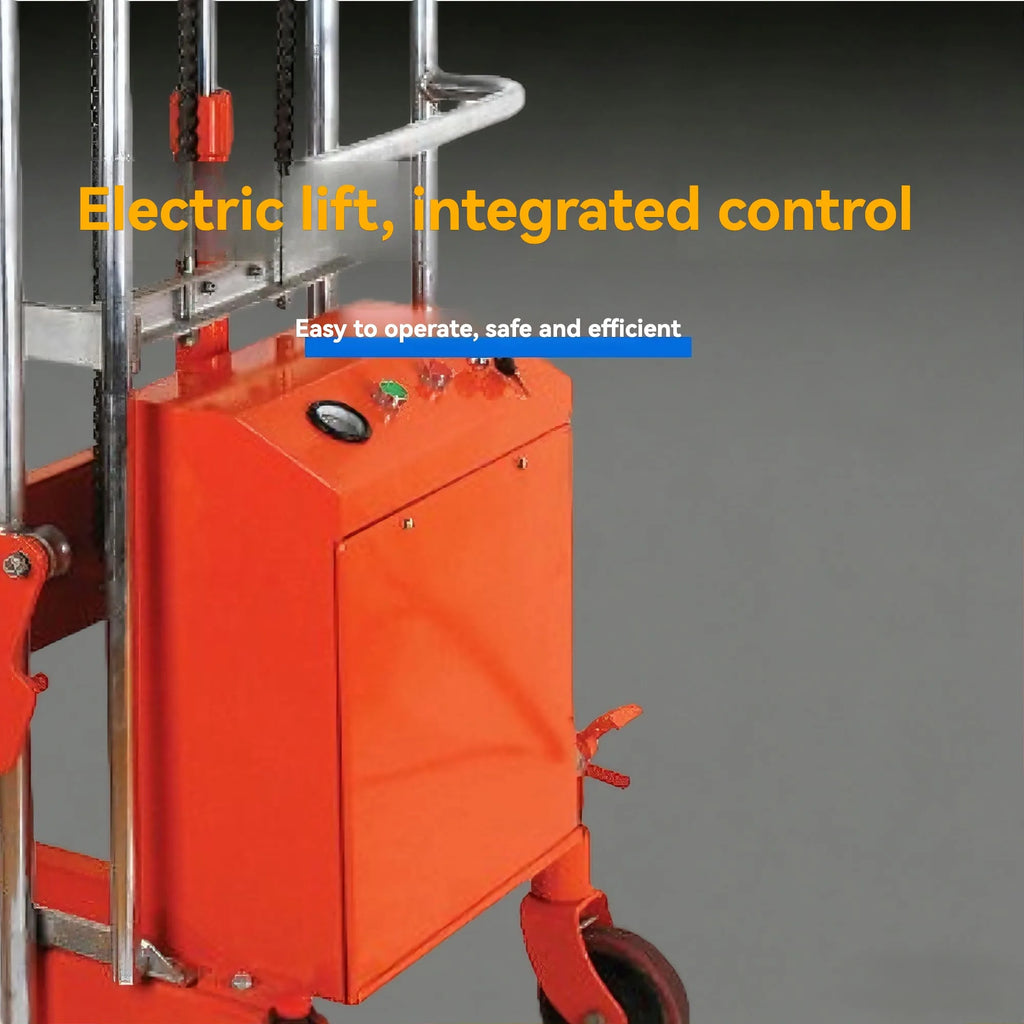

Effortless Electric Lift with Integrated Controls: Features a user-friendly control console with an intuitive key switch, battery indicator, and ergonomic lift levers for precise vertical positioning.
-

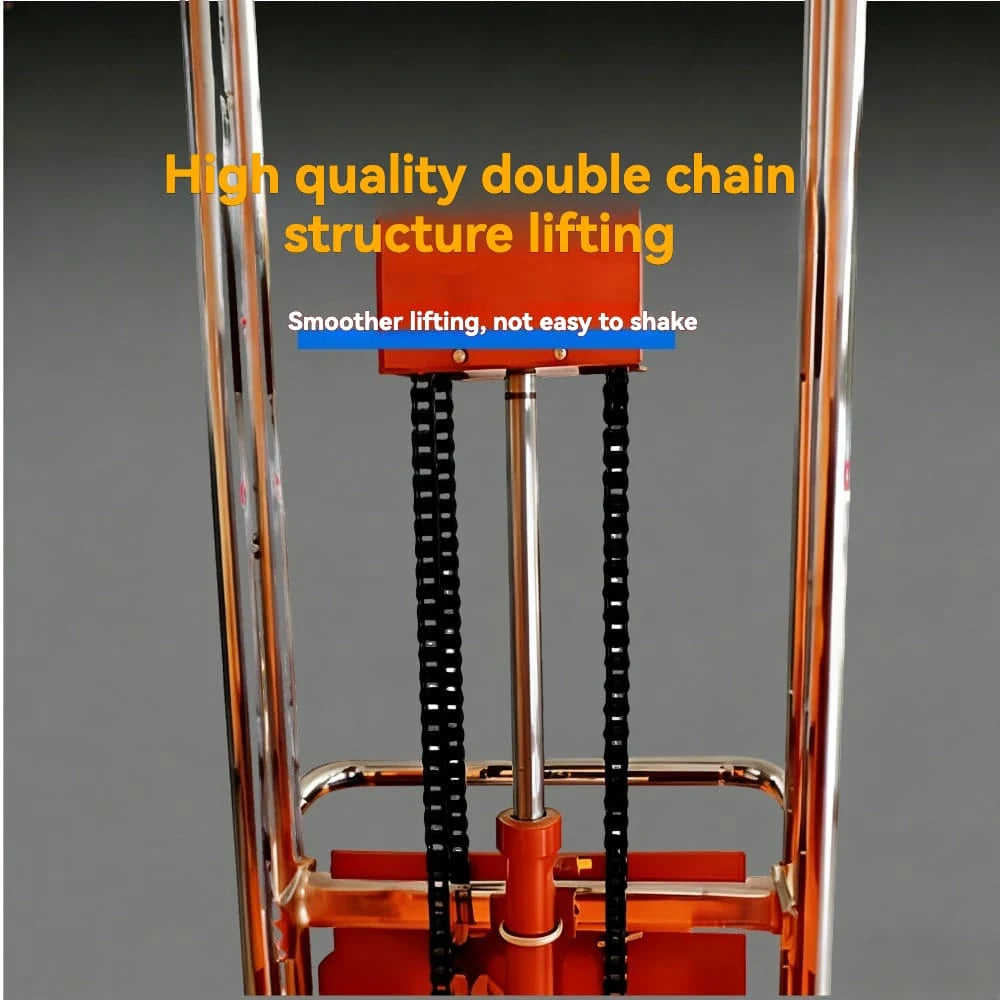

High-Strength Double Chain Lifting Structure: Engineered with a heavy-duty dual-chain hoisting mechanism. This ensures remarkably smooth, vibration-free lifting and exceptional mast rigidity under full capacity loads.
-

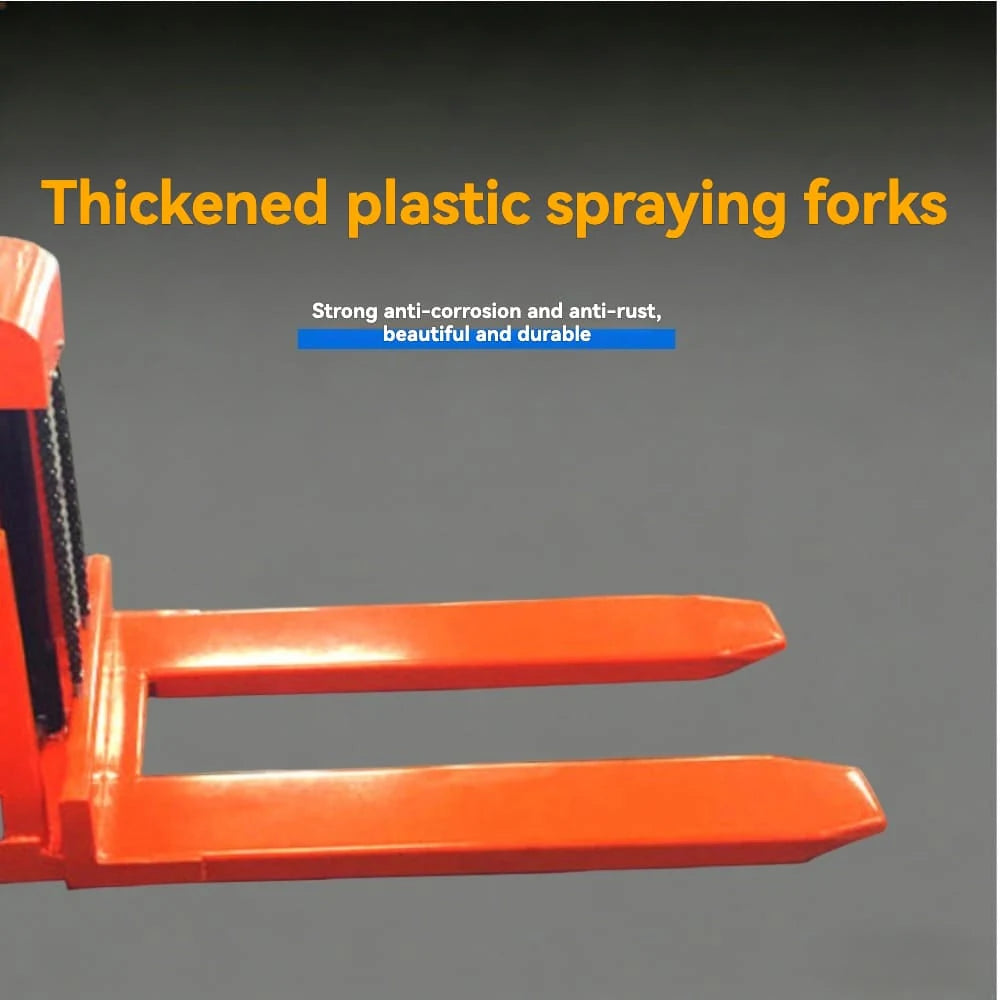

Reinforced Powder-Coated Forks: The durable steel lifting forks feature a thickened, premium electrostatic powder-coated finish to resist impact, scratches, and harsh industrial environments.
-
Ergonomic Walk-Behind Push Handle: Designed with a comfortable, high-clearance steering frame, allowing operators to push and steer the unit easily through tight warehouse aisles.
-

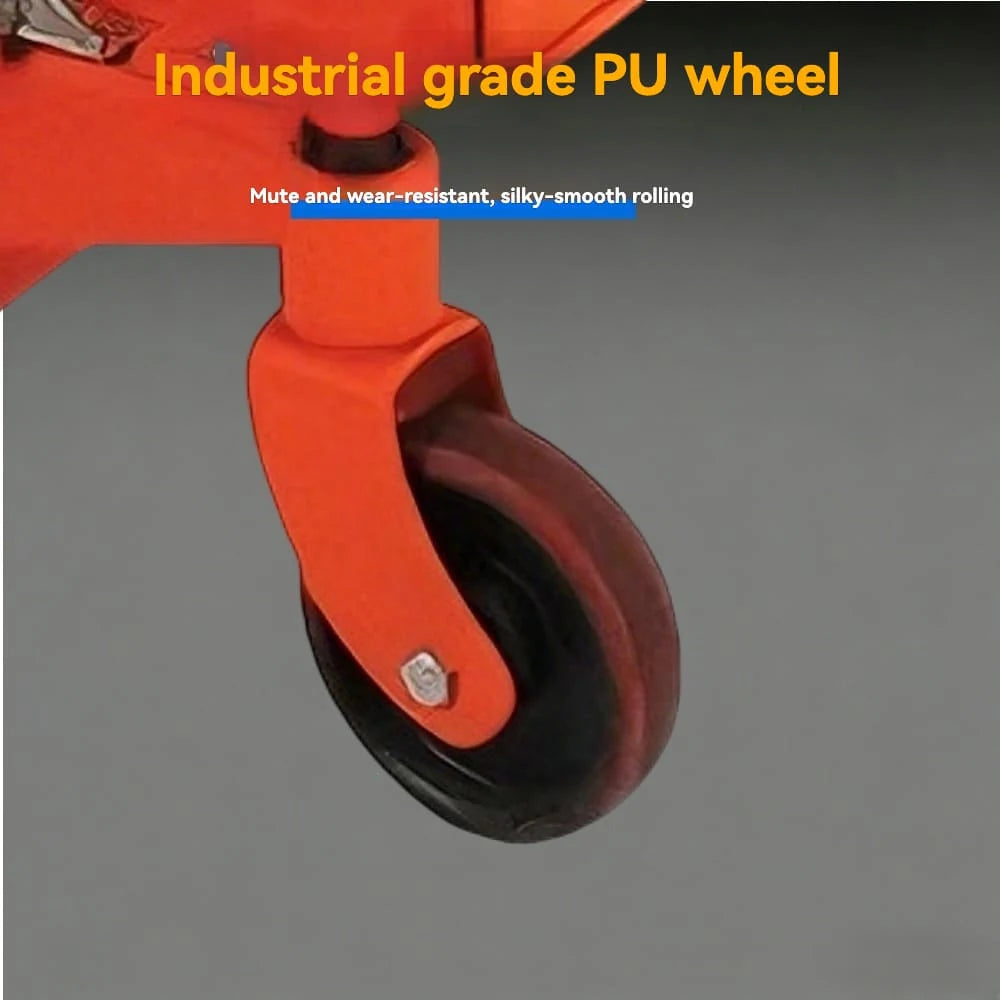

Industrial-Grade Polyurethane (PU) Wheels: Outfitted with non-marking, wear-resistant PU casters. Rear steering wheels include built-in safety foot brakes for quick, secure parking.
Usage Scenarios
-
Narrow-Aisle Warehouse Stacking: Highly maneuverable frame makes this walk behind stacker perfect for stacking pallets and organizing inventory in tight storage areas.
-
Retail & Stockroom Loading: Enables quick, easy transport and high-level shelf placement of heavy retail stock, storage bins, and incoming freight.
-
Industrial Assembly Line Feeding: Works excellently as an adjustable electric pallet lift to raise components directly to assembly line workstations, minimizing physical bending for factory staff.
-
Light-Duty Die and Mold Transport: Easily transport and hoist heavy machining molds and metal tooling blocks to machine press beds.

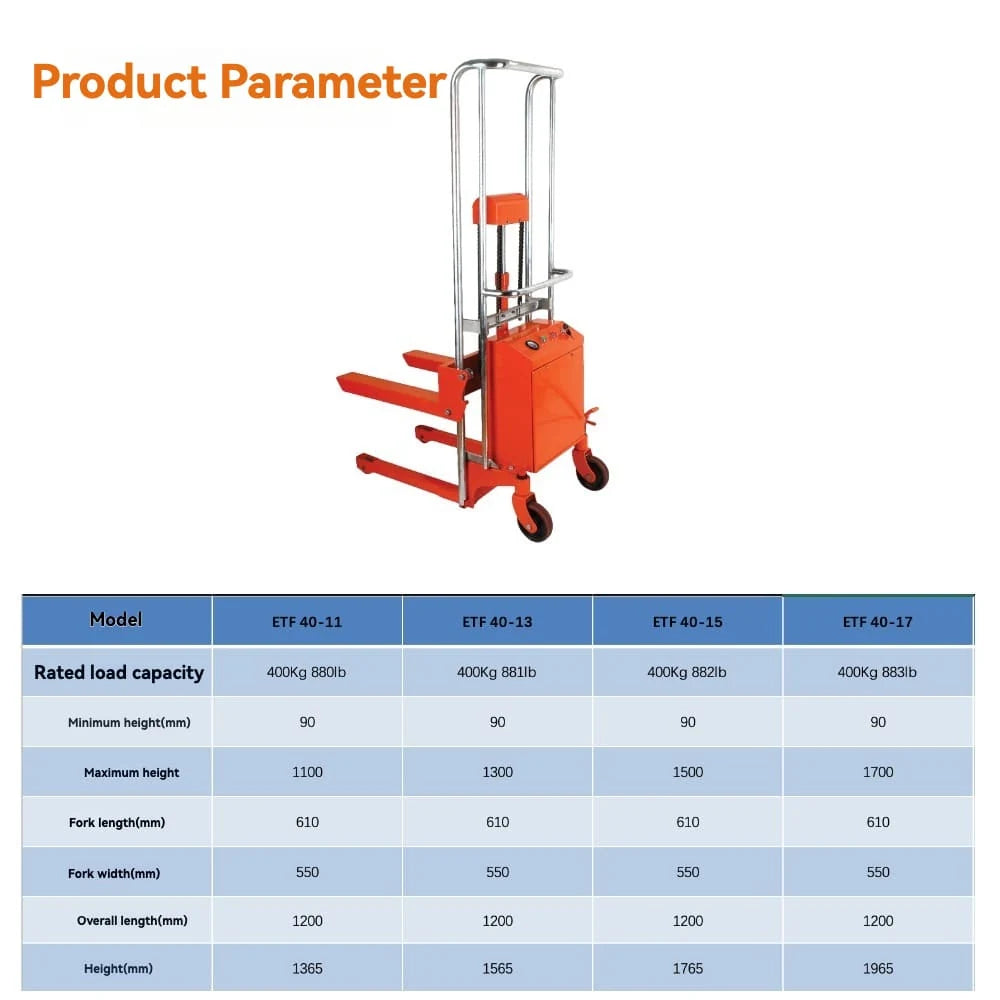

Technical Specifications (ETF Series)
| Attribute | ETF 40-11 | ETF 40-13 | ETF 40-15 | ETF 40-17 |
| Rated Load Capacity | 880 lbs (400 kg) | 881 lbs (400 kg) | 882 lbs (400 kg) | 883 lbs (400 kg) |
| Minimum Fork Height | 3.5" (90 mm) | 3.5" (90 mm) | 3.5" (90 mm) | 3.5" (90 mm) |
| Maximum Lifting Height | 43.3" (1100 mm) | 51.2" (1300 mm) | 59.1" (1500 mm) | 66.9" (1700 mm) |
| Fork Length | 24.0" (610 mm) | 24.0" (610 mm) | 24.0" (610 mm) | 24.0" (610 mm) |
| Fork Width | 21.7" (550 mm) | 21.7" (550 mm) | 21.7" (550 mm) | 21.7" (550 mm) |
| Overall Length | 47.2" (1200 mm) | 47.2" (1200 mm) | 47.2" (1200 mm) | 47.2" (1200 mm) |
| Overall Mast Height | 53.7" (1365 mm) | 61.6" (1565 mm) | 69.5" (1765 mm) | 77.4" (1965 mm) |
| Drive Technology | Manual Push / Electric Lift | Manual Push / Electric Lift | Manual Push / Electric Lift | Manual Push / Electric Lift |
B2B Sourcing & Customization Options
Direct from KINGRISE Factory: Our ETF Series walkie forklift trucks can be customized to align perfectly with your fleet or warehouse floor needs.
Contact our global B2B support team at kingrise.net to request competitive volume pricing. Please share:
-
Your Project Target Volume (We accept single-unit evaluation orders up to full multi-container loads)
-
Custom Fork Requirements (e.g., custom lengths, adjustable fork widths, or high-grade stainless steel finishes)
-
Shipping Method & Destination Details (FOB, CIF, or DDP options available)
