ETE Series Low-Profile E-Shaped Electric Scissor Lift Table, 2,200–3,300 lb
$1,378.68
Product Overview
Raise and position palletized goods, containers, components, and production materials with a low-profile platform designed for manual pallet-jack access.

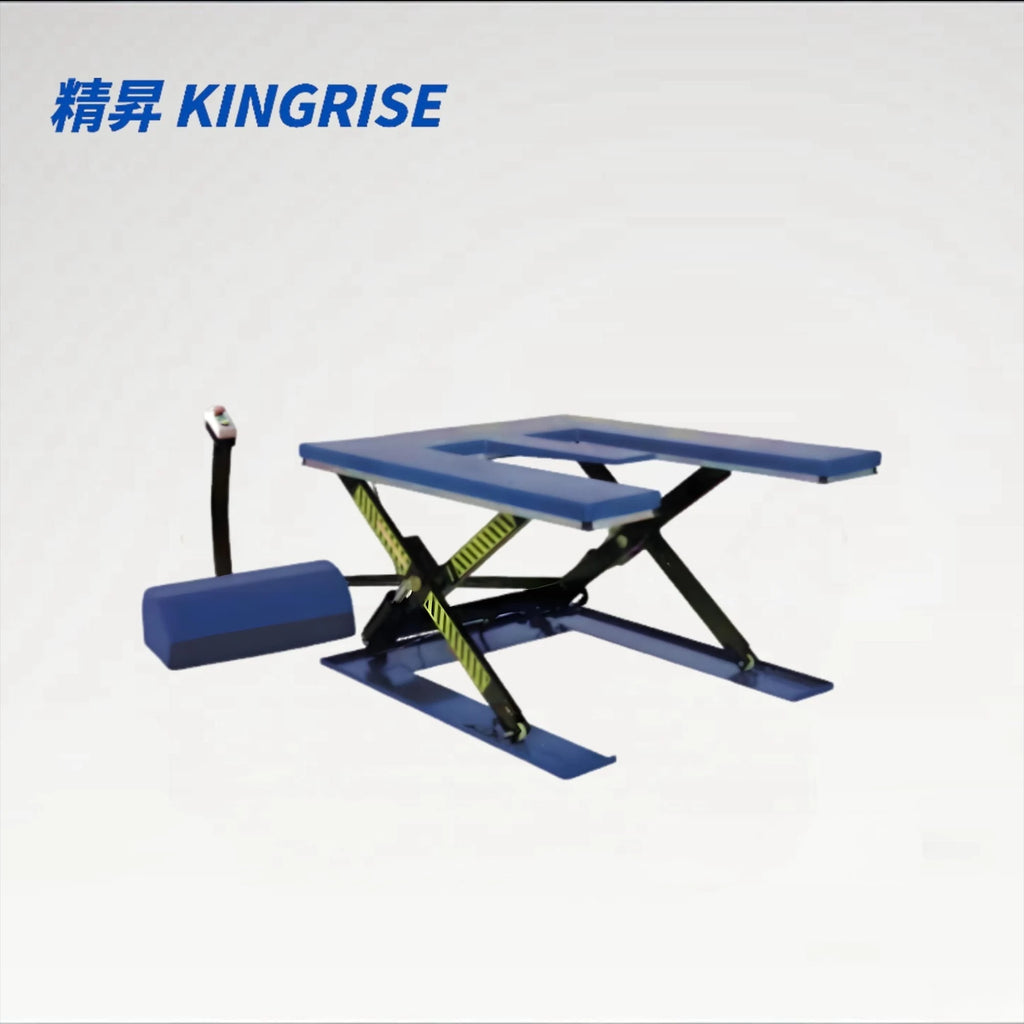

The KINGRISE ETE Series low-profile E-shaped electric scissor lift table is designed for pallet positioning, packing, assembly, production-line supply, inspection, and material handling. Choose the ETE1000 with 2,200 lb (1,000 kg) capacity or the ETE1500 with 3,300 lb (1,500 kg) capacity.
The E-shaped platform opening allows a compatible manual pallet jack to enter the platform area for loading and unloading. The ETE1000 adjusts from 3.3 to 33.9 in (85 to 860 mm), while the ETE1500 adjusts from 4.1 to 33.9 in (105 to 860 mm).
Both models use an electric hydraulic lifting system with a wired pendant controller. Their low closed heights may reduce ramp or pit requirements, depending on the pallet, loading method, and installation environment.
Key Features
-
Two Rated Capacities: Choose the ETE1000 with 2,200 lb capacity or the ETE1500 with 3,300 lb capacity.
-
Low-Profile Design: Minimum platform heights of 3.3 in and 4.1 in support floor-level material-loading arrangements.
-

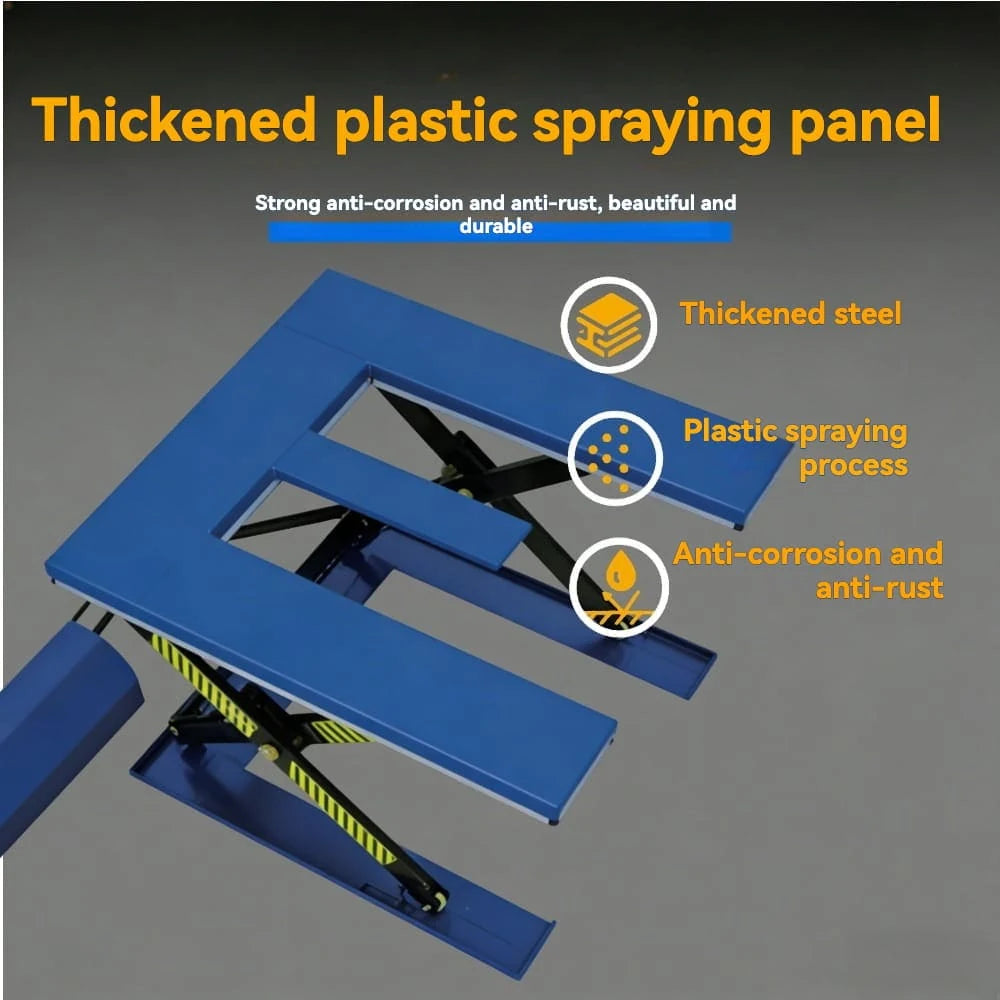

E-Shaped Platform Opening: The open platform configuration allows compatible manual pallet jacks to enter for pallet loading and removal.
-
Electric Hydraulic Operation: The powered hydraulic system raises and lowers the platform without manual pumping.
-
Up to 33.9 in Platform Height: Both models raise loads to a maximum platform height of 33.9 in (860 mm).
-
Two Platform Sizes: Select the ETE1000 with a 57.1 × 44.9 in platform or the larger ETE1500 with a 63.0 × 45.7 in platform.
-

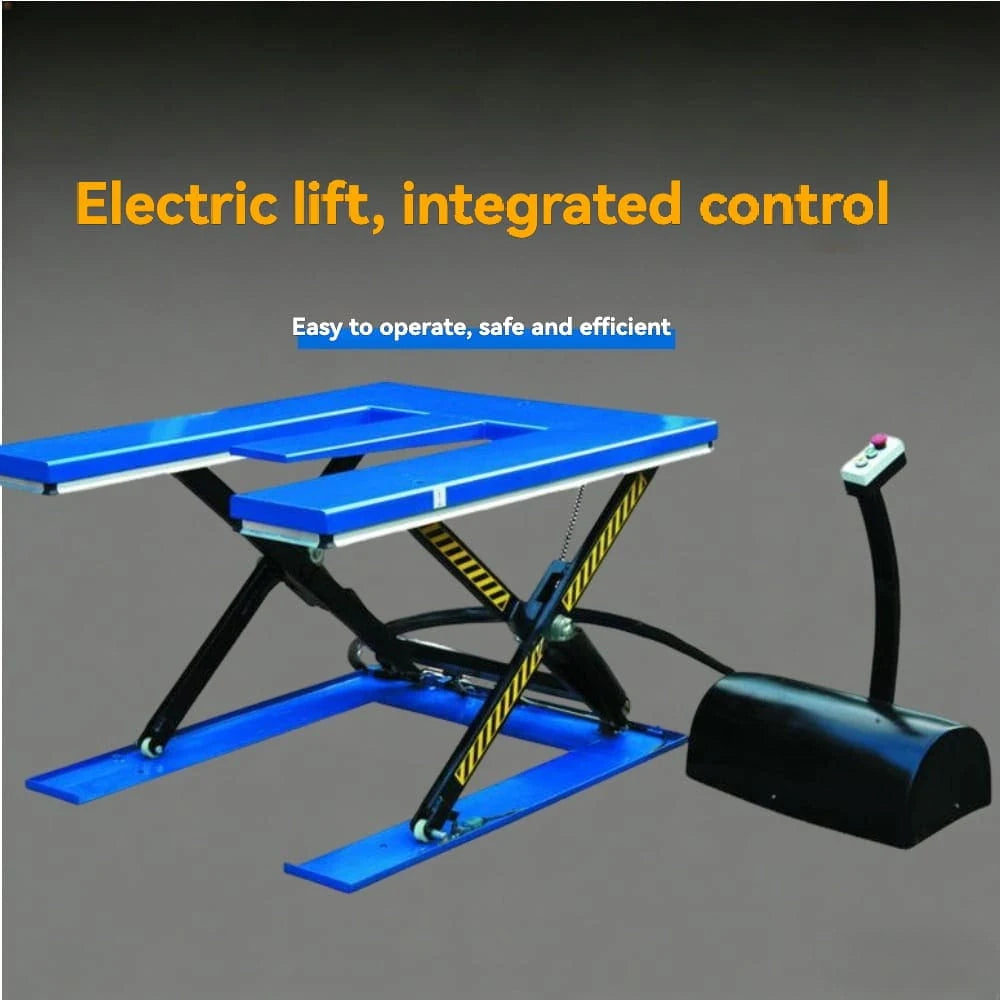

Pendant Control: The wired controller provides convenient raise, lower, and stop functions.
-
Stationary Industrial Design: Suitable for integration into packing areas, production lines, pallet-handling stations, and fixed work areas.
Applications
-
Manual Pallet-Jack Loading: Allow compatible manual pallet jacks to place and remove palletized loads from the platform.
-
Packing and Palletizing: Position pallets, cartons, and packaged materials at different working heights for packing and preparation.
-
Production-Line Material Supply: Raise components and work-in-process materials to match compatible machinery and workstation heights.
-
Inspection and Sorting: Position palletized goods for checking, sorting, labeling, and quality-control tasks.
-
Industrial Assembly: Support machinery components, tooling, containers, and production materials during assembly and installation.

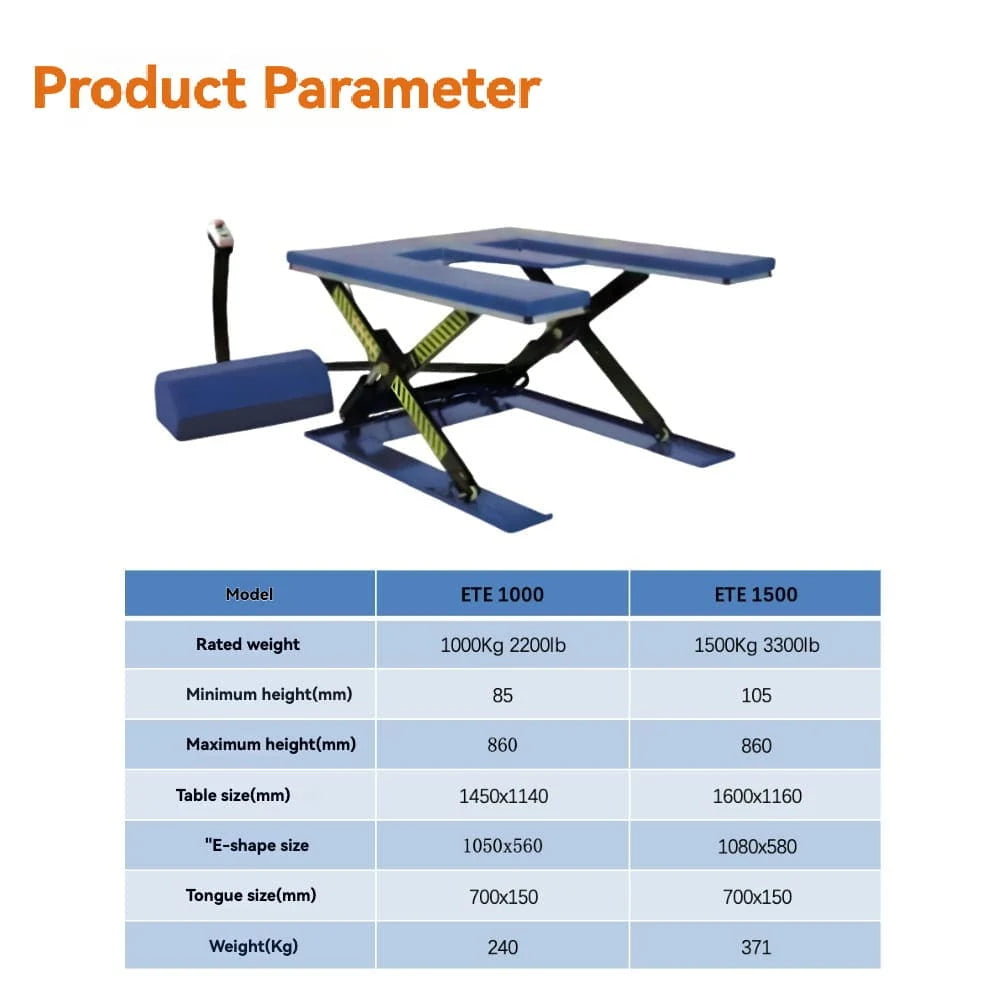

Specifications
| Attribute | ETE1000 | ETE1500 |
|---|---|---|
| Rated Capacity | 2,200 lb (1,000 kg) | 3,300 lb (1,500 kg) |
| Platform Height Range | 3.3–33.9 in (85–860 mm) | 4.1–33.9 in (105–860 mm) |
| Vertical Travel | 30.5 in (775 mm) | 29.7 in (755 mm) |
| Platform Size | 57.1 × 44.9 in (1,450 × 1,140 mm) | 63.0 × 45.7 in (1,600 × 1,160 mm) |
| E-Shaped Opening | 41.3 × 22.0 in (1,050 × 560 mm) | 42.5 × 22.8 in (1,080 × 580 mm) |
| Net Weight | 529 lb (240 kg) | 818 lb (371 kg) |
| Lifting System | Electric Hydraulic | Electric Hydraulic |
| Platform Type | Low-Profile E-Shaped | Low-Profile E-Shaped |
Shipping & Quotation
Shipping cost is calculated separately based on the selected model, order quantity, delivery destination, and installation requirements.
To receive an accurate quotation, please provide:
- Required model
- Required quantity
- Pallet dimensions and load weight
- Destination country
- ZIP or postal code
- Installation environment
- Required power supply
- Loading method and pallet-jack dimensions
- Any special packing or delivery requirements
