ET Series Heavy-Duty Stationary Electric Scissor Lift Table, 8,800–11,000 lb

Product Overview

Raise and position heavy machinery components, molds, tooling, palletized goods, and industrial materials with a powered stationary platform.

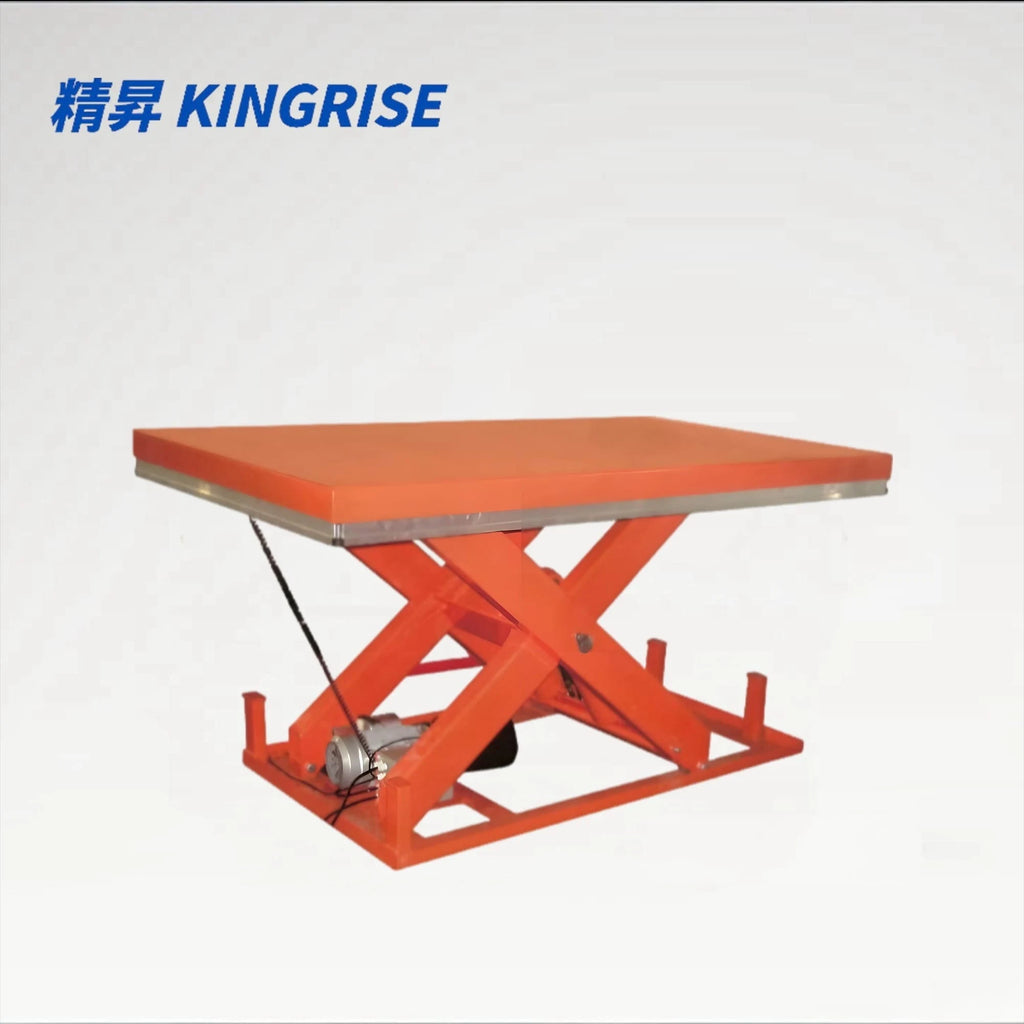

The KINGRISE ET Series heavy-duty stationary electric scissor lift table is designed for industrial assembly, production-line integration, material loading, inspection, and workstation height adjustment. Four models are available with rated capacities of 8,800 lb (4,000 kg) or 11,000 lb (5,000 kg).

Depending on the selected model, the platform size ranges from 66.9 × 47.2 in to 98.4 × 59.1 in, with maximum platform heights from 43.3 to 78.7 in (1,100 to 2,000 mm).

The electric hydraulic lifting system provides powered raising and lowering, while the reinforced steel scissor structure supports controlled vertical movement for heavy industrial loads. The stationary design is suitable for integration beside machinery, conveyors, production lines, assembly stations, and loading areas.

Key Features

• 8,800 or 11,000 lb Capacity: Choose a 4,000 kg or 5,000 kg model based on the required load capacity.

• Four Platform Configurations: Platform dimensions range from 66.9 × 47.2 in to 98.4 × 59.1 in for different load sizes and operating areas.

• Up to 78.7 in Platform Height: Model options provide maximum platform heights from 43.3 to 78.7 in (1,100–2,000 mm).

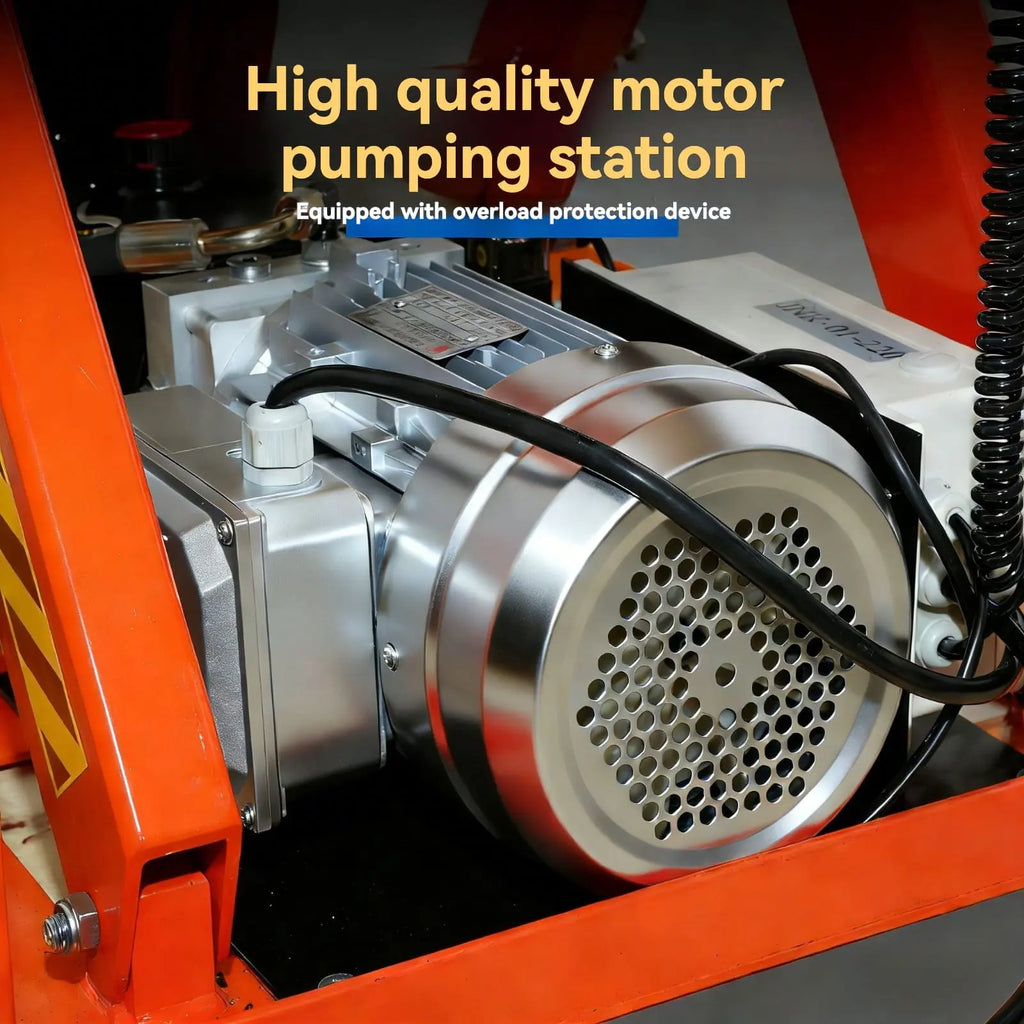

• Electric Hydraulic Operation: The motor-driven hydraulic system raises and lowers the platform without manual pumping.

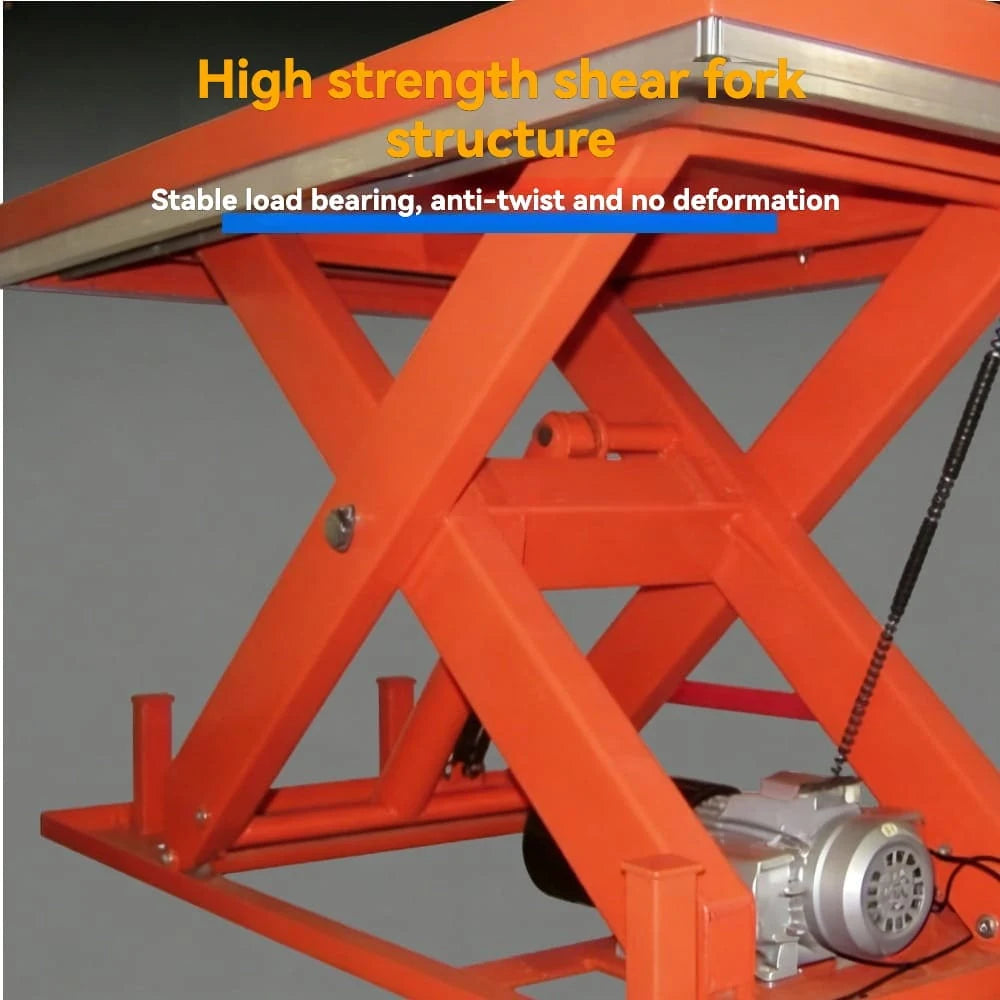

• Reinforced Scissor Structure: The heavy-duty steel lifting mechanism supports controlled vertical movement within the rated capacity.

• Stationary Industrial Design: Designed for fixed installation in manufacturing, assembly, loading, and material-positioning areas.

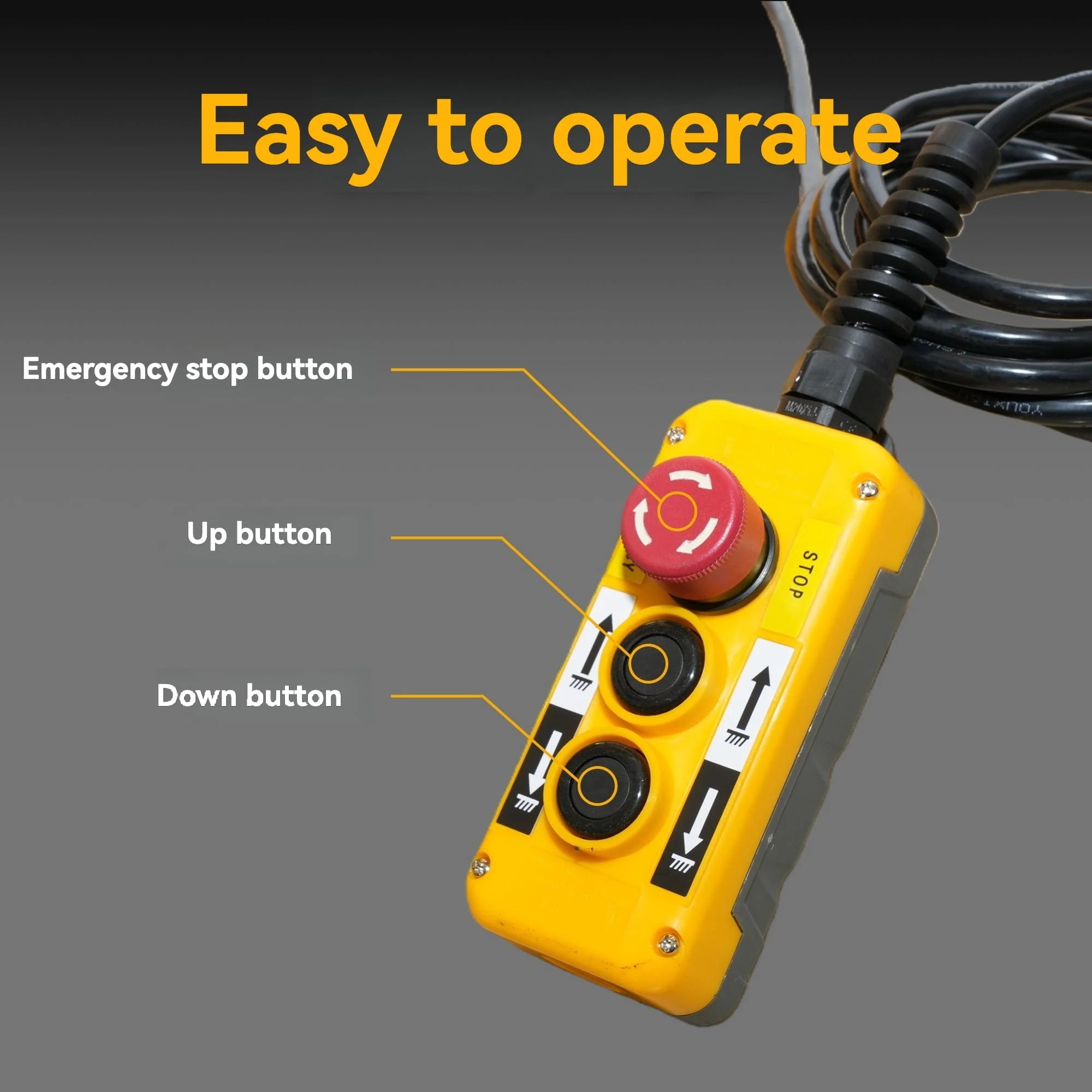

• Pendant Control: A wired controller allows convenient raising, lowering, and stopping of the platform.

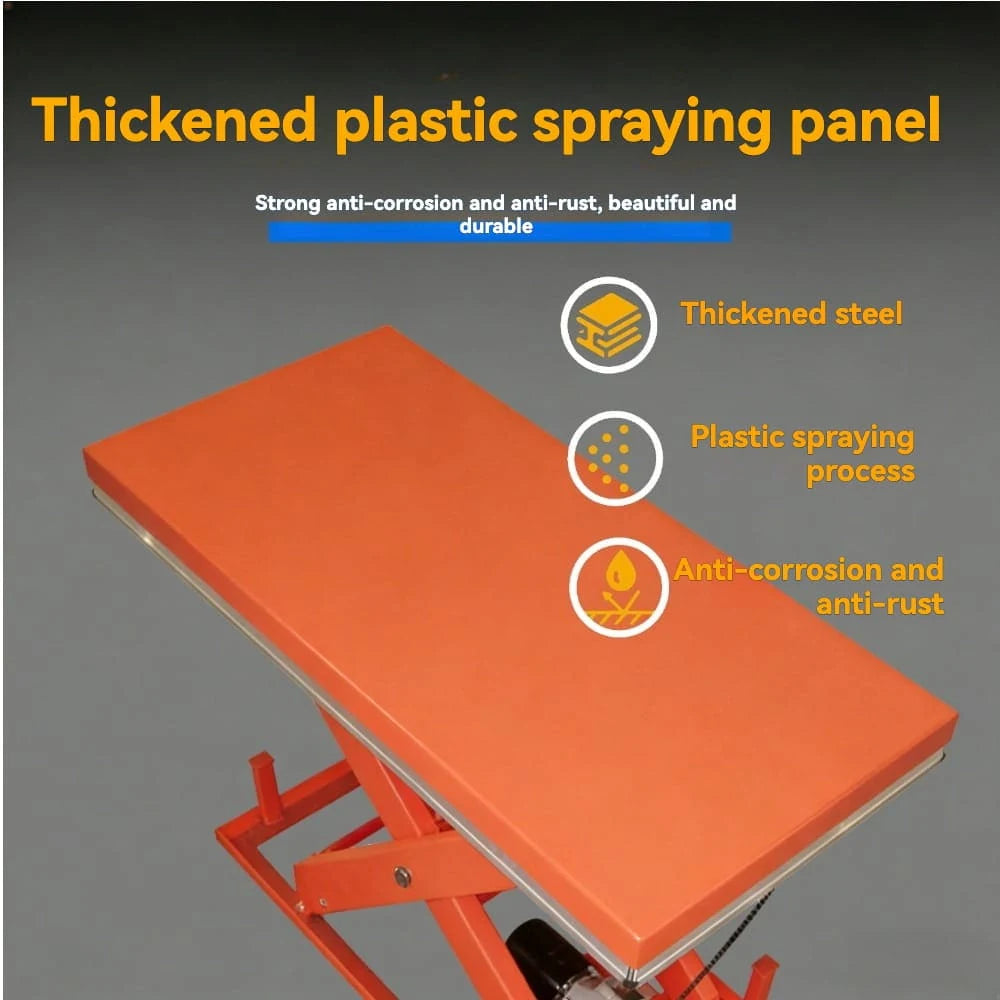

• Powder-Coated Steel Construction: The steel platform and frame feature a high-visibility powder-coated finish for regular industrial use.

Applications

• Heavy Industrial Assembly: Position machinery components, tooling, molds, and equipment during assembly and installation.

• Production-Line Integration: Raise work-in-process materials to match machinery, conveyors, and assembly-station heights.

• Material Loading and Positioning: Adjust heavy loads to suitable heights for loading, unloading, inspection, and transfer.

• Palletized Material Handling: Position compatible palletized goods for preparation, production supply, and quality-control work.

• Machinery and Tooling Maintenance: Raise dies, molds, motors, and heavy components for maintenance and servicing.

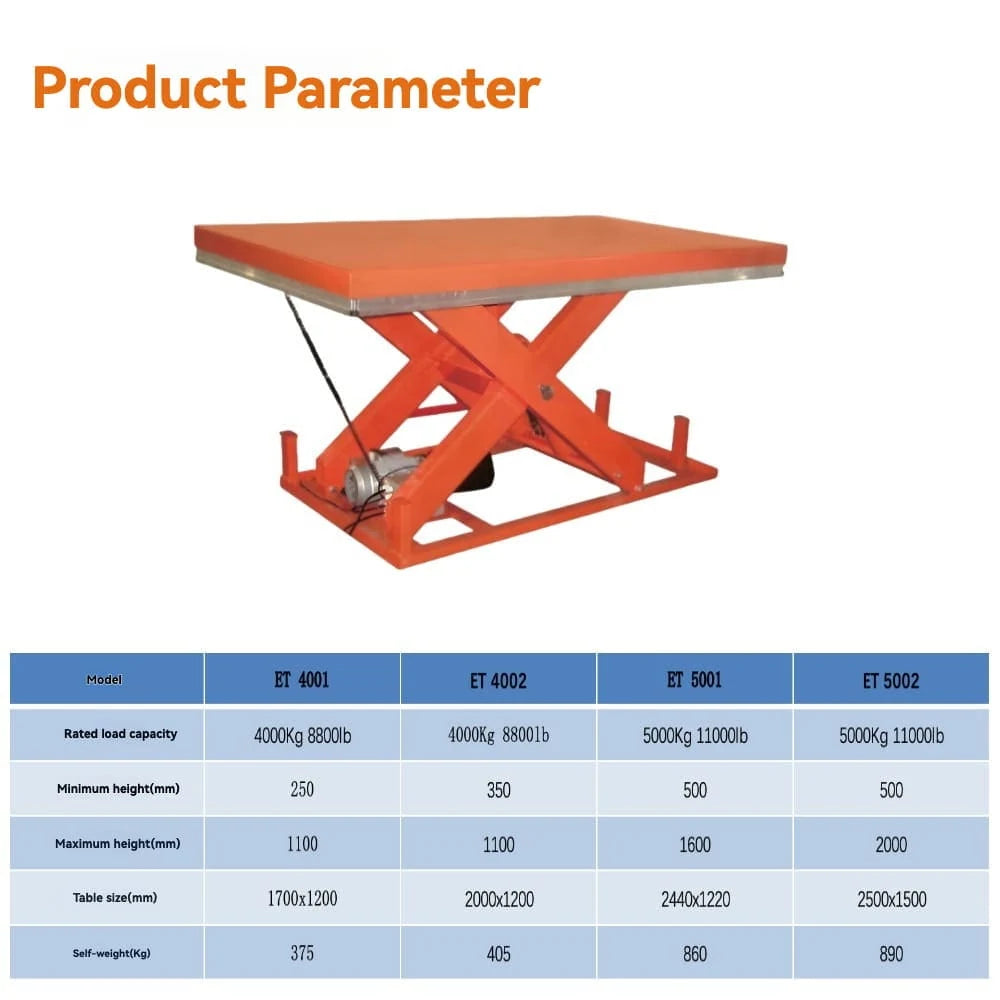

Specifications
