When Does an Electric Lift Table Need Customization?
A custom electric lift table becomes useful when a standard model can lift the weight but does not match the actual process.
This often happens in manufacturing.
A factory may need a platform that aligns with a conveyor. A machine shop may handle a component that is longer than a standard platform. An assembly line may need a specific minimum height so workers can transfer parts without lifting them manually.
In these cases, the question is not simply:
“How much can the lift table carry?”
A better question is:
“How should the lift table fit into the entire workflow?”
Before requesting a custom design, it is worth comparing the available electric lift table range. A standard model may already meet the required capacity, height and mobility.
If it does not, customization can focus on the exact specifications that prevent the standard table from working efficiently.

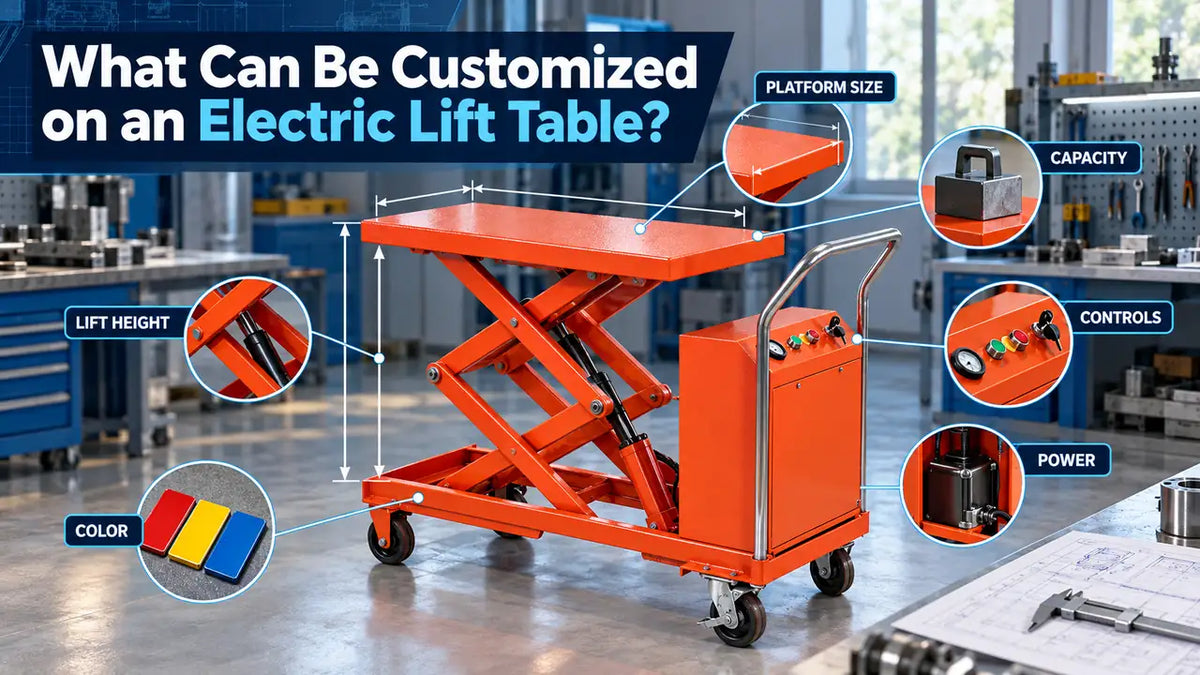

1. Load Capacity
Capacity is one of the first specifications buyers consider.
But a custom electric lift table should be sized around the real operating load, not only the weight of the main component.
Include:
- workpiece weight;
- fixture weight;
- tooling;
- trays or containers;
- accessories that remain on the platform.
For example, a component may weigh 400 kg, while the fixture used to hold it adds another 80 kg.
That changes the actual lifting requirement.
At the same time, avoid specifying much more capacity than the application requires without a reason. Higher capacities can affect the scissor structure, power unit, overall machine weight and cost.
The goal is a suitable working capacity, not the largest possible rating.
2. Platform Length and Width
Platform size is one of the most common reasons for choosing a custom electric hydraulic lift table.
A load can be within the rated capacity but still be unsuitable for the platform.
This happens with:
- long machine parts;
- large molds;
- wide containers;
- unusual pallets;
- production fixtures;
- assembled products.
Start by measuring the actual load footprint.
Then consider how workers load and unload it.
A platform used only for vertical positioning may need different dimensions from one used beside a conveyor or machine.
Large overhangs should not be treated as a normal solution. If the load repeatedly extends far beyond a standard deck, specifying the correct platform size is usually more practical.
KINGRISE's custom industrial lift table range includes configurations where platform dimensions can be adapted to application requirements.
3. Minimum and Maximum Lift Height
Maximum height gets most of the attention, but minimum height can be equally important.
Consider three measurements:
source height → lift travel → destination height
A table may need to receive materials from a low cart and then raise them to a 900 mm production workstation.
Another application may need to match two conveyors at different levels.
In both cases, the useful specification is not simply “maximum lift height.”
It is the usable height range.
Also remember the height of the load itself.
Platform height plus product height determines the actual working position.
For custom projects, send the supplier both the required minimum and maximum platform heights rather than asking only for a “high lift table.”
4. Mobile or Stationary Design
Mobility can also be customized around the process.
A stationary electric lift table works well when the lifting point stays in one place.
Examples include:
- production lines;
- fixed assembly stations;
- conveyor transfer points;
- permanent machine-feeding positions.
A mobile configuration works better when one unit must move between several areas.
If you are unsure whether mobility is necessary, compare the application with standard mobile products such as the ETF30 and ETF50 electric scissor lift tables before specifying a fully custom design.
For very heavy mobile positioning, a model such as the ETF100D heavy-duty electric lift table also shows why capacity and mobility should be considered together.
5. Platform Surface and Material Transfer
A flat steel platform works well for many applications.
But some processes need the load to move horizontally after it reaches the correct height.
This is where platform surface design becomes important.
Possible requirements may include:
- roller tops;
- special fixtures;
- locating points;
- stops;
- application-specific surfaces.
A roller-top platform, for example, can support easier transfer between a lift table and another material-handling surface when the heights are properly matched.
This type of customization is especially relevant for:
- conveyors;
- packaging lines;
- production cells;
- machine loading.
The platform should be designed around how materials enter, remain on, and leave the table.
6. Power Configuration
An electric lift table needs power, but the correct power arrangement depends on where it works.
A fixed production station may have convenient access to mains power.
A mobile lift table may benefit more from battery operation because it needs to move between work areas.
Before specifying power, consider:
- whether the table moves;
- local electrical requirements;
- daily lifting frequency;
- charging opportunities;
- production schedule.
Do not choose battery power only because it sounds more flexible.
If the table never moves from one production station, a fixed power arrangement may be simpler.
7. Controls and Operator Position
The operator also needs to control the table from a practical position.
A standard control arrangement may not work when the table is:
- integrated beside a machine;
- positioned inside a work cell;
- used from more than one side;
- part of a production line.
For a custom project, clearly explain:
Where will the operator stand?
That helps determine the most practical control arrangement.
The purpose of customization is not to add features.
It is to remove problems from the real operating process.
When Should You Stay With a Standard Electric Lift Table?
Customization is not always necessary.
A standard electric lift table is usually the better choice when the required:
- capacity;
- platform size;
- height range;
- mobility;
- controls
already match the job.
Standard models can reduce purchasing complexity and make replacement easier.
A custom design makes more sense when a standard model creates a repeated operational problem.
For example:
standard platform too small → customize platform
cannot reach conveyor height → customize lifting range
must move between stations → use or customize a mobile configuration
material must roll off platform → consider roller-top design
This is a better approach than customizing everything automatically.
What Information Should You Prepare?
A good custom electric lift table inquiry should describe the application, not just say:
“We need a custom lift table.”
Prepare the following information:
- maximum load weight;
- load dimensions;
- required platform size;
- minimum platform height;
- maximum platform height;
- mobile or stationary use;
- daily lifting frequency;
- power preference;
- material transfer method;
- operating environment;
- required quantity.
Photos, sketches or workstation drawings can also help explain unusual applications.
For OEM, distributor, production-line or bulk projects, you can contact KINGRISE with these requirements for configuration evaluation.
Final Thoughts
A custom electric lift table should solve a specific process problem.
Do not customize simply because customization is available.
Start with the load, workstation and material flow.
Then determine whether a standard electric lift table already fits.
If it does not, focus customization on the specifications that matter most:
capacity, platform size, lift height, mobility, surface design, power and controls.
The best custom lift table is not the one with the most special features.
It is the one that fits naturally into the work being done.
