Complete Guide to Scissor Lift Tables

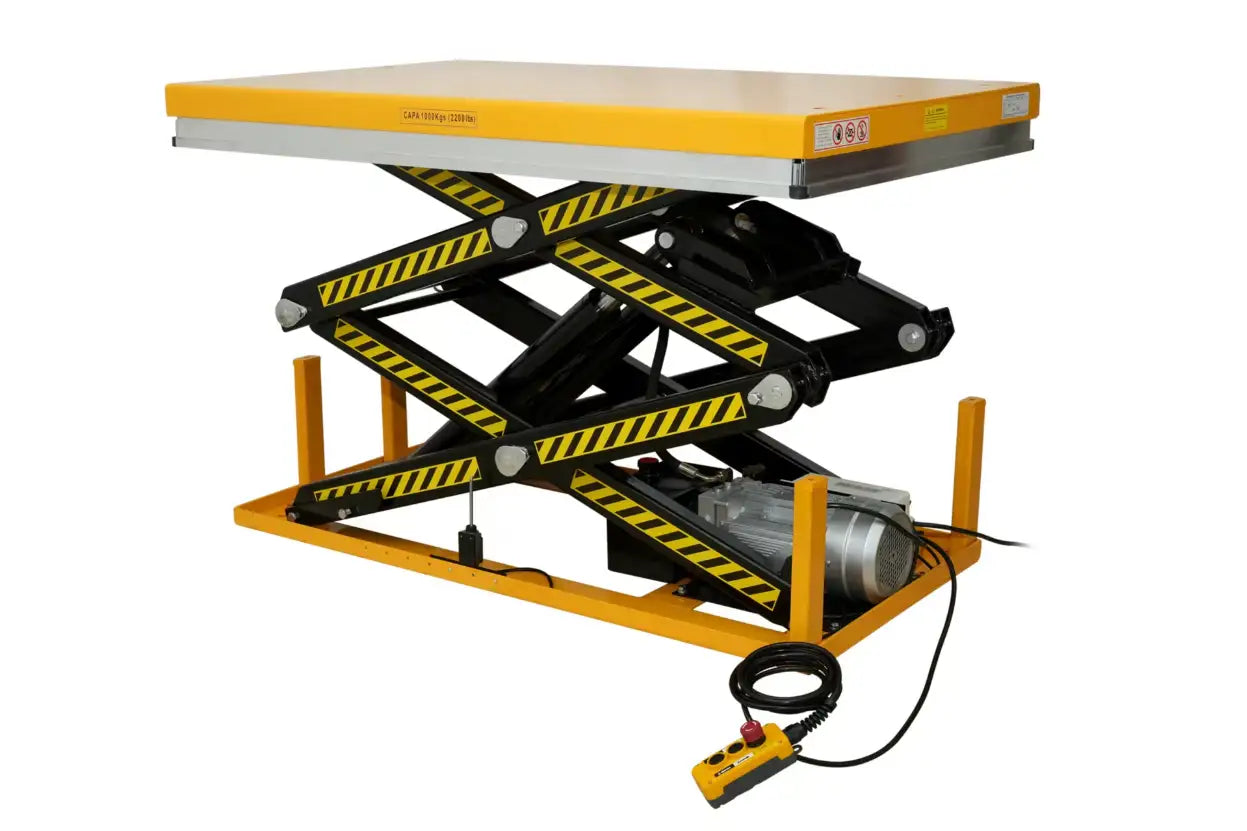

Stationary industrial electric hydraulic scissor lift table with yellow platform, black scissor legs featuring hazard warning stripes, and attached hand pendant control against a plain background

Complete Guide to Scissor Lift Tables

Factories and warehouses in the UK and Europe need safe and fast material handling. A scissor lift table (also called a hydraulic scissor lift table) makes lifting heavy items simple and safe. It helps workers adjust working heights easily on assembly lines, move heavy parts, or load pallets. Choosing the right industrial hydraulic lift platform protects your team and boosts daily work efficiency.

This guide explains how these hydraulic lifting platforms work, where to use them, and how to choose the best unit for your business.

Overview and Primary Uses of Hydraulic Lift Tables

A hydraulic scissor lift is a strong, height-adjustable lifting platform. It uses fluid power to raise or lower heavy goods smoothly. You can choose between stationary and mobile models to fit your workplace.

1. Primary Industrial Applications

  • Assembly Line Ergonomics: An ergonomic lifting table raises parts to waist height. This prevents workers from bending over repeatedly.
  • Die and Tooling Handling: Workers use an electric lift table or mobile lift table to move and install heavy factory tools safely.
  • Pallet Loading and Unloading: An industrial hydraulic lift adjusts pallet heights at packing stations to protect workers' backs.
  • Conveyor System Integration: Fixed hydraulic platform lifts connect elevated conveyor belts and automated packing lines seamlessly.
  • Easy Parts Transfer: Portable manual hydraulic lift tables help technicians move materials between workstations before lifting them into place.

2. Stationary vs. Mobile Solutions

Industrial workplaces usually choose between two main designs:

  • Mobile Units: Choose mobile electric hydraulic lift tables or scissor lift trolleys if you need to move goods around machine shops and warehouses.
  • Stationary Units: Fixed units sit directly on the floor or inside a pit. These heavy-duty industrial scissor lift tables work continuously on production lines and handle very heavy loads.

How Does a Hydraulic Scissor Lift Work?

A hydraulic scissor lift relies on simple fluid power to raise and lower heavy loads safely.

1. The Core Hydraulic Mechanism

When you activate the machinery, it follows four easy steps:

  1. Hydraulic Pump Starts: An electric motor or foot pedal drives the pump to move fluid.
  2. Cylinder Extends: Pressurized oil enters the hydraulic cylinder.
  3. Scissor Legs Open: The cylinder pushes the steel scissor legs open, converting horizontal force into upward movement.
  4. Platform Rises: The top deck raises smoothly, keeping the heavy load level and steady.

2. Lowering and Safety Valves

Lowering the platform does not require electric power. A valve opens, and fluid flows slowly back into the tank. Safety valves instantly stop the oil flow if a hose fails, keeping the equipment completely safe.

3. Power Options

  • Manual Hydraulic: Uses a foot pedal. Great for light lift trolley and lifting trolleys used in small repairs.
  • Electric (AC Power): Plugs into plant power for fast, continuous lifting on busy assembly lines.
  • Battery Power: Uses a rechargeable battery for an electric scissor lift or mobile hydraulic lift platform without trailing cables.

Key Benefits of Industrial Lifting Platforms

Adding lift tables or a table with hydraulic lift features to your facility offers clear advantages:

1. Fewer Workplace Injuries

Repeated lifting and bending cause back strain. A scissor table lift keeps work at a comfortable height. This protects workers and meets UK and EU health and safety rules (BS EN 1570-1).

2. Heavy Capacity and Custom Designs

A compact mobile scissor lift table carries 150 kg to 1,000 kg. For larger needs, fixed industrial scissor lift tables can handle heavy-duty loads up to 10 tonnes. Factories can also order custom platform sizes, rotating tops, or safety bellows.

3. Great Platform Stability

Strong scissor legs support the scissor lift platform evenly. This keeps heavy equipment steady, even if the weight is off-center.

4. Compact and Space-Saving

When fully lowered, a hydraulic table lift stays low to the ground for easy loading. When elevated, it reaches high working levels while using minimal floor space.

Frequently Asked Questions (FAQ)

Q1: Should I choose a mobile lift trolley or a fixed electric lift table?

A: It depends on how your facility operates:

Q2: What safety standards apply in the UK and Europe?

A: Industrial lifting equipment in Europe and the UK should follow the BS EN 1570-1 safety standard. Look for these key safety features:

  • Safety Frame (Anti-Pinch Bar): Stops lowering if an object touches the bottom edge of the deck.
  • Maintenance Locks: Holds the scissor arms safely during routine repairs.
  • Overload Protection: Prevents lifting weights that exceed the unit's rating.

Q3: How do I maintain a hydraulic scissor lift?

A: Follow these basic maintenance steps:

  1. Check Oil Levels: Inspect hydraulic fluid levels every three months.
  2. Grease Moving Parts: Keep scissor joints and wheels well-lubricated.
  3. Inspect Wiring and Hoses: Look for wear or leaks on wires and fluid lines.
  4. Test Safety Buttons: Check emergency stop controls regularly.
